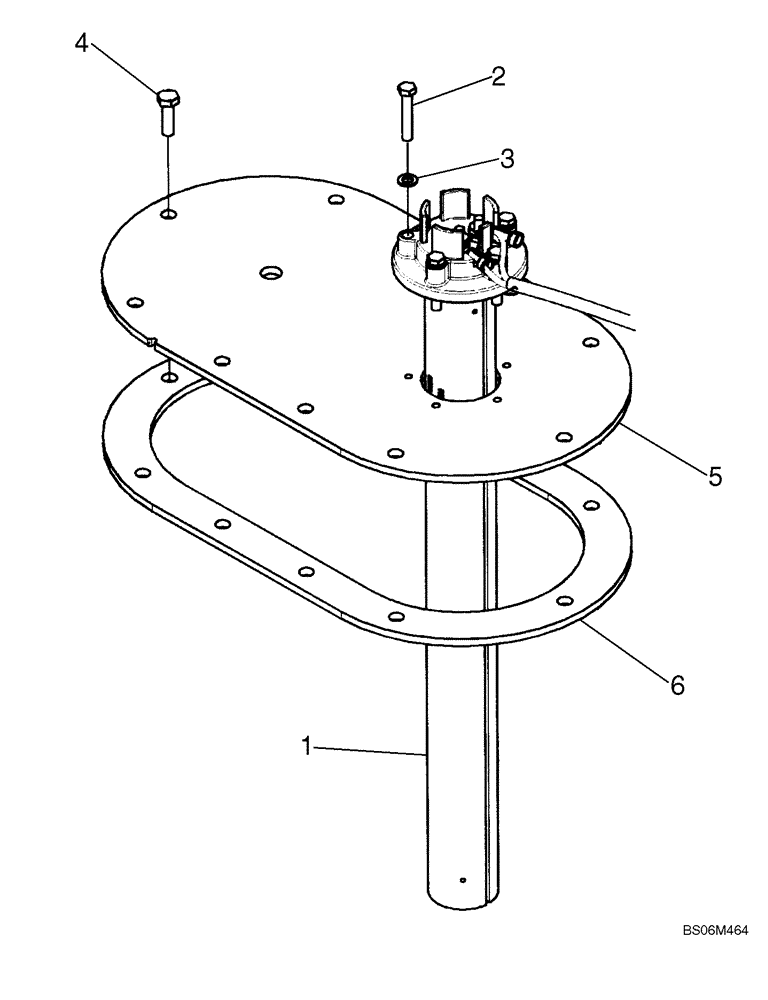

Запчасти Case 921E (03-03A) - FUEL TANK FILLER - SENDER (03) - FUEL SYSTEM

1

87542712

SENDER UNIT

Sender Fuel Level; Incl. Ref. 1A

1шт.

1a

87617083

KIT

NUT, Pack; For Fuel Level Sender; Replaces 355331A1; Not Illustrated

1шт.

2

814-5030

BOLT,Hex, M5 x 0.8 x 30mm, Cl 8.8

5шт.

3

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

4

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

10шт.

5

87381314

PLATE

1шт.

6

100734A1

GASKET,4.6mm Thk

1шт.
