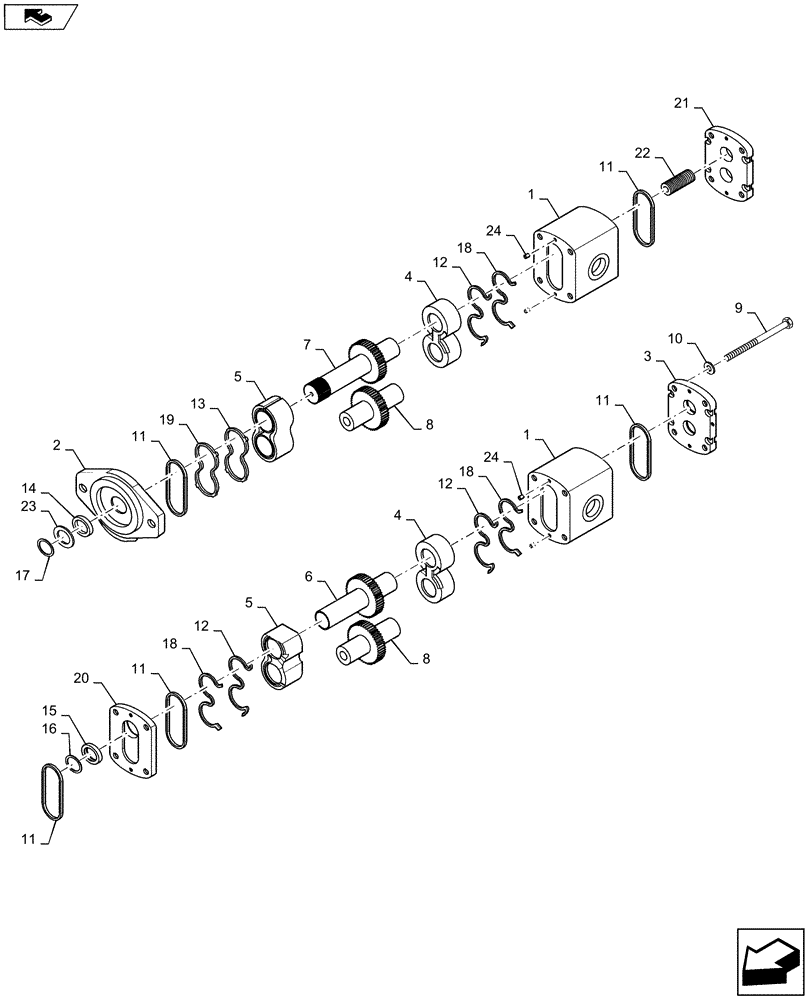

/ / / / / / / / (35.733.AA) - AXLE, OIL COOLER, PUMP
Запчасти Case 1221F (35.733.AA) - AXLE, OIL COOLER, PUMP (35) - HYDRAULIC SYSTEMS
12
17
5
15
7
12
1
11
8
home
24
18
12
11
24
11
16
5
4
23
4
3
2
21
10
18
8
13
14
11
1
9
6
19
20
18
22
11
.
81LQ-10110
PUMP
Complete Pump
1шт.
1
ZTAW-00296
BODY
2шт.
2
ZTAW-00297
COVER
Front
1шт.
3
ZTAW-00003
COVER
Rear
1шт.
4
ZTAW-00248
PLATE
Thrust
3шт.
5
ZTAW-00235
PLATE
Thrust
1шт.
6
ZTAW-00298
DRIVE
Gear
1шт.
7
ZTAW-00299
DRIVE SHAFT
1шт.
8
ZTAW-00034
GEAR
Driven
2шт.
9
ZTAW-00300
SCREW
4шт.
10
ZTAW-00014
WASHER
4шт.
11
ZTAW-00301
O-RING
5шт.
12
ZTAW-00246
SEAL
3шт.
13
ZTAW-00242
SEAL
1шт.
14
ZTAW-00243
SEAL
Shaft
2шт.
15
ZTAW-00302
SHAFT
Shaft Seal
1шт.
16
ZTAW-00106
RING
1шт.
17
ZTAW-00247
RING
1шт.
18
ZTAW-00224
SEAL
Anti Extrusion
3шт.
19
ZTAW-00244
SEAL
Anti Extrusion
1шт.
20
ZTAW-00303
FLANGE
1шт.
21
ZTAW-00168
FLANGE
1шт.
22
ZTAW-00108
SHAFT
Splinedconn
1шт.
23
ZTAW-00245
WASHER
Backup
1шт.
24
ZTAW-00027
DOWEL
Pin
1шт.
