(21.135.AX[01]) - TRANSMISSION, POWER TAKE OFF

Запчасти Case 1221F (21.135.AX[01]) - TRANSMISSION, POWER TAKE OFF (21) - TRANSMISSION

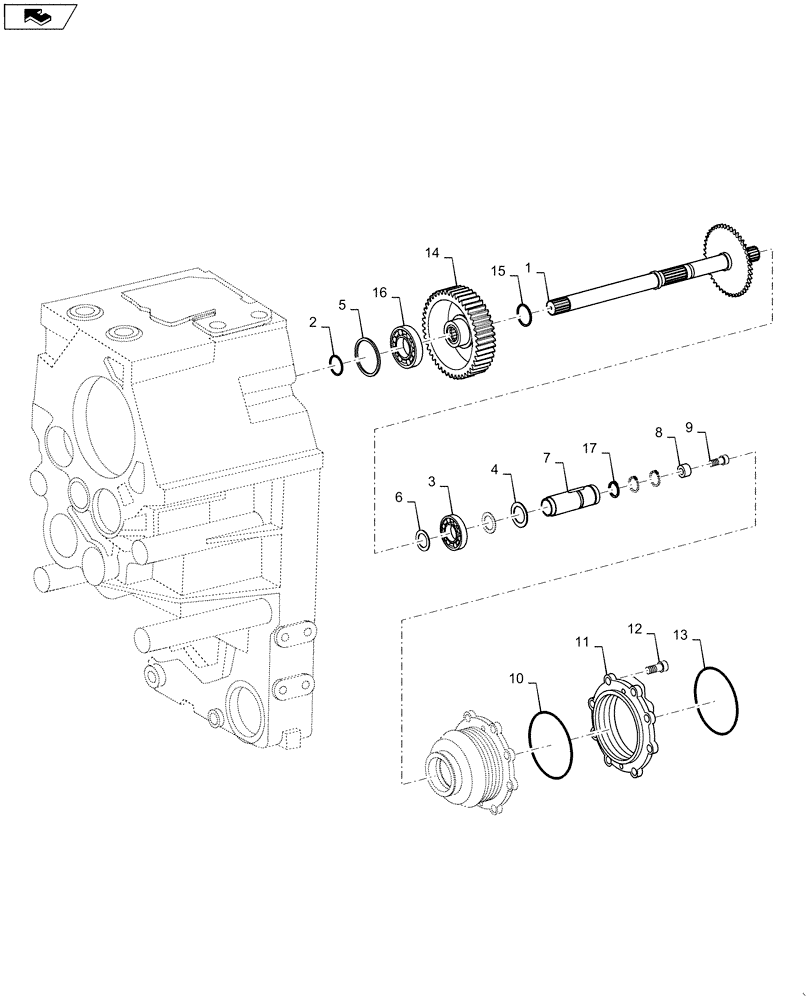

Схема запчастей Case 1221F - (21.135.AX[01]) - TRANSMISSION, POWER TAKE OFF (21) - TRANSMISSION
15
6
2
17
1
9
12
8
13
3
4
5
7
10
11
home
14
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8900126868

SHAFT

Power Take Off

1шт.

2

84397567

SPECIAL RING,38mm ID x 42mm OD x 2mm Thk

1шт.

3

87582527

ROLLER BEARING

1шт.

4

81198C1

DISC

0.5mm Thick

1шт.

5

87582533

SHIM,0.6mm Thk

0.6mm Thick

1шт.

5

87582534

SHIM,0.65mm Thk

0.65mm Thick

1шт.

5

87582535

SHIM,0.7mm Thk

0.70mm Thick

1шт.

5

87582536

SHIM,0.75mm Thk

0.75mm Thick

1шт.

5

87582537

SHIM,0.8mm Thk

0.80mm Thick

1шт.

5

87582538

SHIM,0.85mm Thk

0.85mm Thick

1шт.

5

87582539

SHIM,0.9mm Thk

0.90mm Thick

1шт.

5

87582540

SHIM,0.95mm Thk

0.95mm Thick

1шт.

5

87582541

SHIM,1mm Thk

1.0mm Thick

1шт.

5

87582542

SHIM,1.05mm Thk

1.05mm Thick

1шт.

5

87582561

SHIM,1.1mm Thk

1.10mm Thick

1шт.

5

87582562

SHIM,1.15mm Thk

1.15mm Thick

1шт.

5

87582563

SHIM,1.2mm Thk

1.20mm Thick

1шт.

5

87582564

SHIM,1.25mm Thk

1.25mm Thick

1шт.

5

87582565

SHIM,1.3mm Thk

1.30mm Thick

1шт.

5

87582566

SHIM,1.35mm Thk

1.35mm Thick

1шт.

5

87582567

SHIM,1.4mm Thk

1.40mm Thick

1шт.

5

87582568

SHIM,1.45mm Thk

1.45mm Thick

1шт.

5

87582569

SHIM,1.5mm Thk

1.50mm Thick

1шт.

5

87582570

SHIM,1.55mm Thk

1.55mm Thick

1шт.

5

87582594

SHIM,1.6mm Thk

1.60mm Thick

1шт.

5

84476478

SHIM,1.65mm Thk

1.65mm Thick

1шт.

5

3140339R1

SHIM,78mm ID x 89.8mm OD x 2mm Thk

2.0mm Thick

1шт.

5

84476484

SHIM,2mm Thk

1.47mm Thick

1шт.

5

84476486

SHIM,1.63mm Thk

1.63mm Thick

1шт.

5

84476487

SHIM,1.75mm Thk

1.75mm Thick

1шт.

5

84476489

SHIM,1.7mm Thk

1.70mm Thick

1шт.

5

84476491

SHIM,1.8mm Thk

1.80mm Thick

1шт.

5

84476482

SHIM,1.85mm Thk

1.85mm Thick

1шт.

5

84476494

SHIM,1.9mm Thk

1.90mm Thick

1шт.

5

84476495

SHIM,1.95mm Thk

1.95mm Thick

1шт.

6

8900129002

WASHER

2.0mm Thick

2шт.

7

84395476

SPLINED COUPLING

1шт.

8

84395478

SPACER

1шт.

9

100270A1

BOLT

1шт.

10

335463A1

O-RING

1шт.

11

84395481

FLANGE

Pump

1шт.

12

8900126926

BOLT

8шт.

13

8603527

O-RING

1шт.

14

87582595

GEAR

1шт.

15

800-5145

SNAP RING,M45, Ext

2.5 Thick

1шт.

16

87582611

ROLLER BEARING

1шт.

17

S301878

SNAP RING

3шт.
