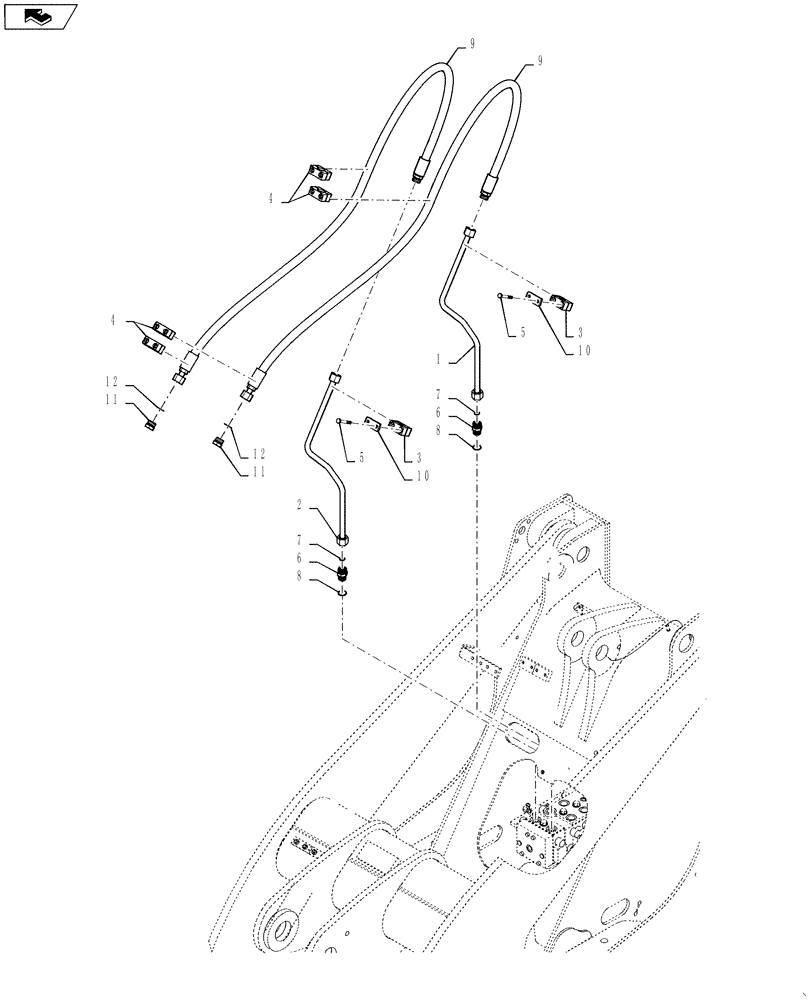

Запчасти Case 521F (35.200.09) - THIRD SPOOL AUXILIARY LINE INSTALLATION (XR AND LR) (35) - HYDRAULIC SYSTEMS

1

87405793

HYD TUBE,19.05 mm OD x 610, 130 mm L

Third Spool Hyd Left

1шт.

2

87405795

HYD TUBE,19.05 mm OD x 610, 150 mm L

Third Spool Hyd Right

1шт.

3

379374A1

BLOCK

Tube Mounting

2шт.

4

372453A1

BLOCK

Tube Mounting

4шт.

5

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

6

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Also Order # 7,8

2шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

9

87700044

HOSE ASSY.

Third Spool XR/LR

2шт.

10

367658A1

PLATE

2шт.

11

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Also Order # 12

2шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
