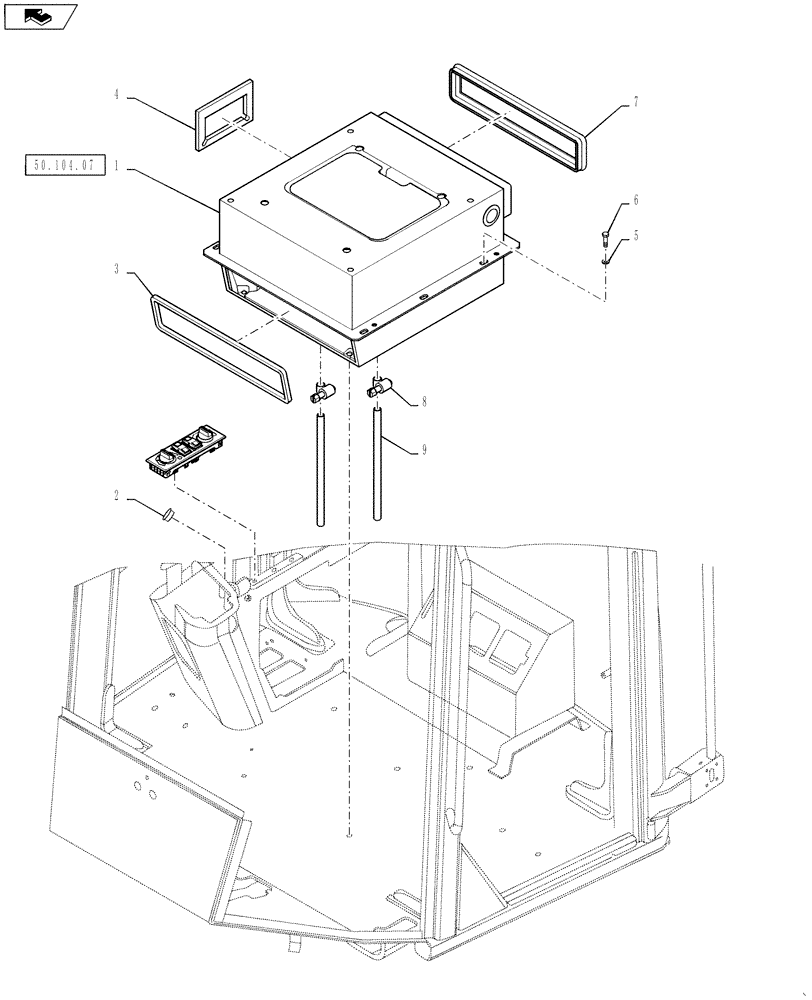

Запчасти Case 521F (50.200.03) - AIR CONDITIONING WITH HEATER INSTALLATION (50) - CAB CLIMATE CONTROL

1

84192329

AIR CONDITIONER

Assembly See Fig. 50.200.01

1шт.

2

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

3

76303496

GASKET,10mm Thk

1шт.

4

76303497

GASKET

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

7

87651073

SEAL

SEAL

1шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

9

87587637

PLASTIC-RUBBER TUBE

1/2" Clear

2шт.
