(55.404.04) - REAR LIGHT INSTALLATION, (NA/INT)

Запчасти Case 521F (55.404.04) - REAR LIGHT INSTALLATION, (NA/INT) (55) - ELECTRICAL SYSTEMS

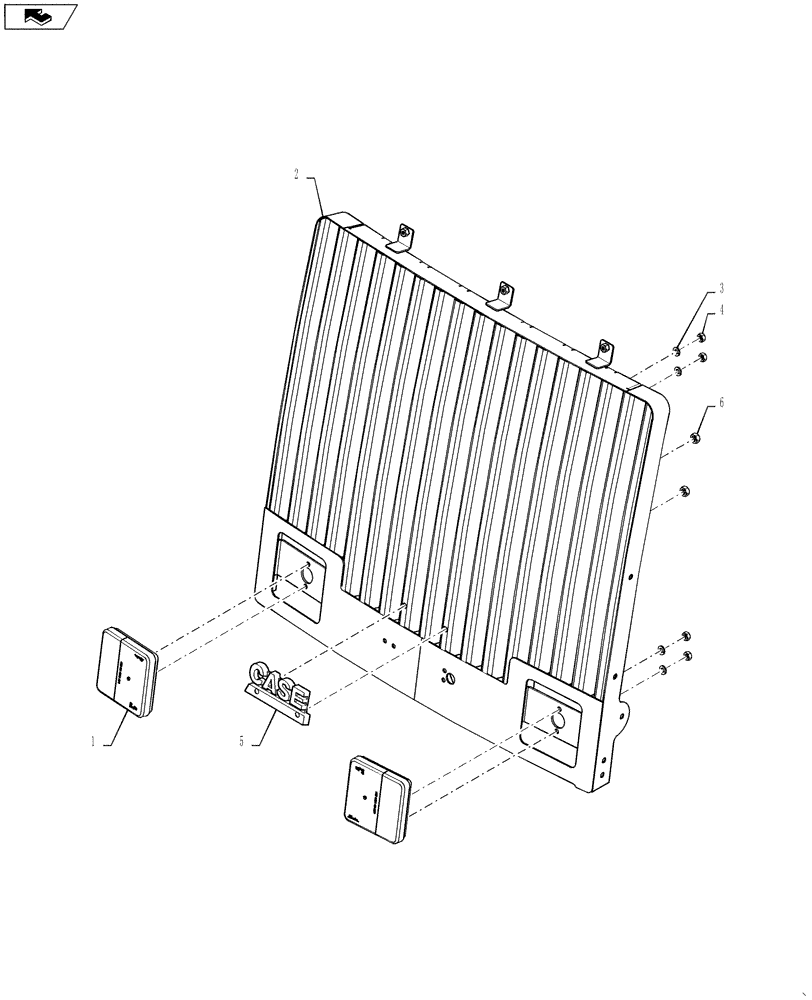

Схема запчастей Case 521F - (55.404.04) - REAR LIGHT INSTALLATION, (NA/INT) (55) - ELECTRICAL SYSTEMS
3
5
6
1
2
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84373506

LAMP,LED

Sealed, Rear Combination; Component Parts Not Serviced Separately

2шт.

2

87638981

RADIATOR GRILLE

Rear, CNH Black

1шт.

3

892-11006

LOCK WASHER,M6

4шт.

4

825-1406

NUT,M6, Cl 8

4шт.

5

186989A1

EMBLEM

Case

1шт.

6

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.
