(55.512.06) - JOYSTICK WIRE HARNESS ASSEMBLY, FRAME

Запчасти Case 521F (55.512.06) - JOYSTICK WIRE HARNESS ASSEMBLY, FRAME (55) - ELECTRICAL SYSTEMS

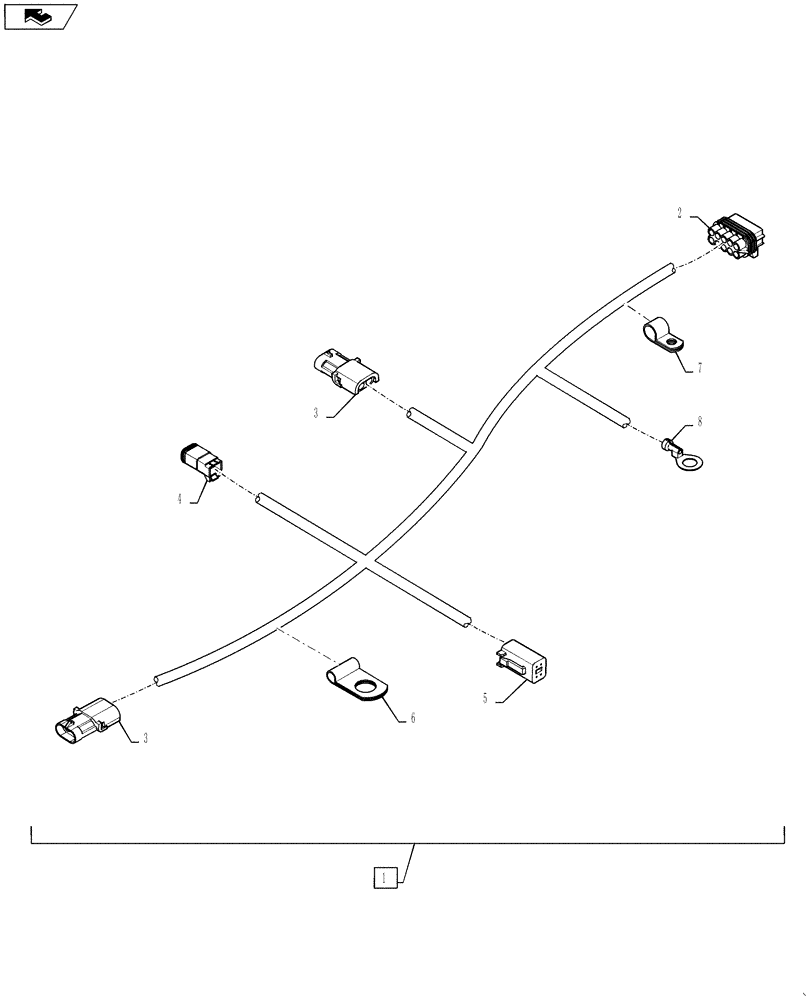

Схема запчастей Case 521F - (55.512.06) - JOYSTICK WIRE HARNESS ASSEMBLY, FRAME (55) - ELECTRICAL SYSTEMS
4
home
5
6
1
8
3
3
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84153444

WIRE HARNESS

Joystick Harness Frame

1шт.

2

256352A1

CONNECTOR, ELEC

CONNECTOR Packard 10 Cavity Plug

1шт.

3

245483C1

ELEC CONNECTOR,Male, 2 Pin

Weather Pack 2 Cavity

2шт.

4

225316C1

ELEC CONNECTOR,Female, 2 Pin

Deutsch 2 Cavity Plug

1шт.

5

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

Deutsch 4 Cavity Plug

1шт.

6

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

6.3 mm

1шт.

7

515-21111

CLAMP

11.1 mm

1шт.

8

1964706C1

TERMINAL CONNECTOR

Ring

1шт.
