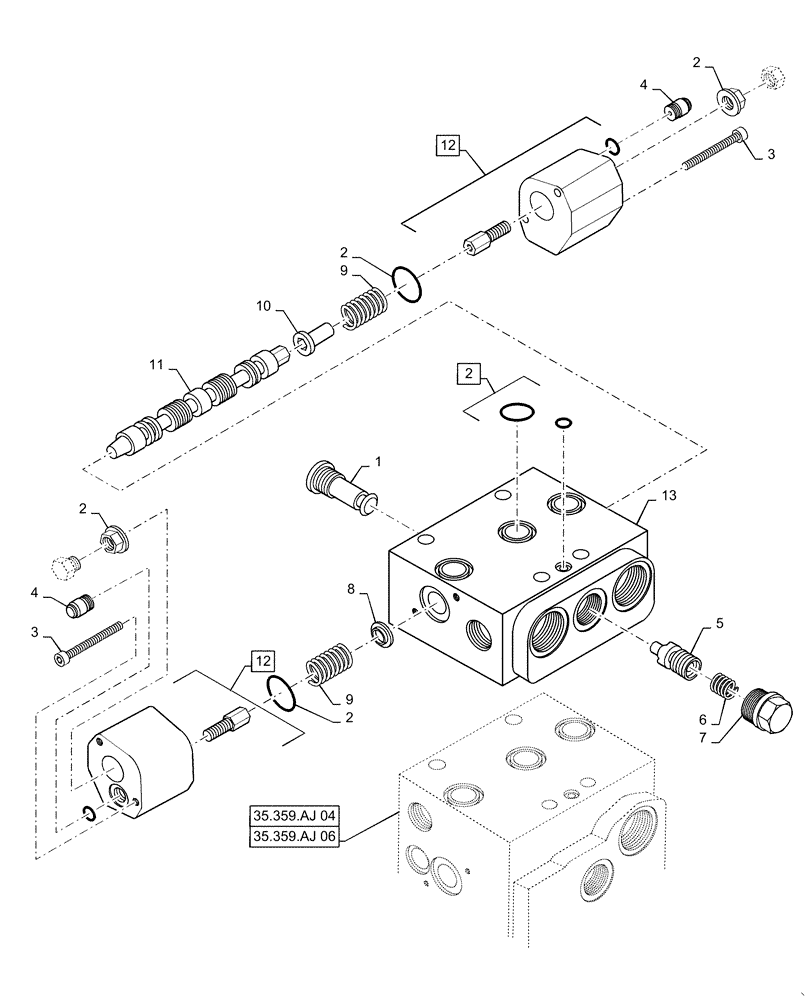

Запчасти Case 521F (35.359.AJ[08]) - VAR - 782492, 782495 - VALVE ASSEMBLY, LOADER CONTROL, THIRD AND FOURTH SPOOL, Z-BAR AND XR/LR (35) - HYDRAULIC SYSTEMS

1

8604567

VALVE, CHECK

Loder Control

1шт.

2

8604566

SEAL KIT

For Housing

1шт.

3

87657975

HEX SOC SCREW,M5 x 55mm, Cl 8.8

4шт.

4

8604578

CHECK VALVE

Throttle

2шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

6

NSS

NOT SOLD SEPARAT

Compression Spring

1шт.

7

8604581

SCREW,Lock, M6

1шт.

8

NSS

NOT SOLD SEPARAT

Spring Retainer

1шт.

9

NSS

NOT SOLD SEPARAT

Compression Spring

2шт.

10

NSS

NOT SOLD SEPARAT

Retainer

1шт.

11

NSS

NOT SOLD SEPARAT

Spool

1шт.

12

8604576

COVER

M6 Valve

2шт.

13

NSS

NOT SOLD SEPARAT

Block, M6, Spool

1шт.
