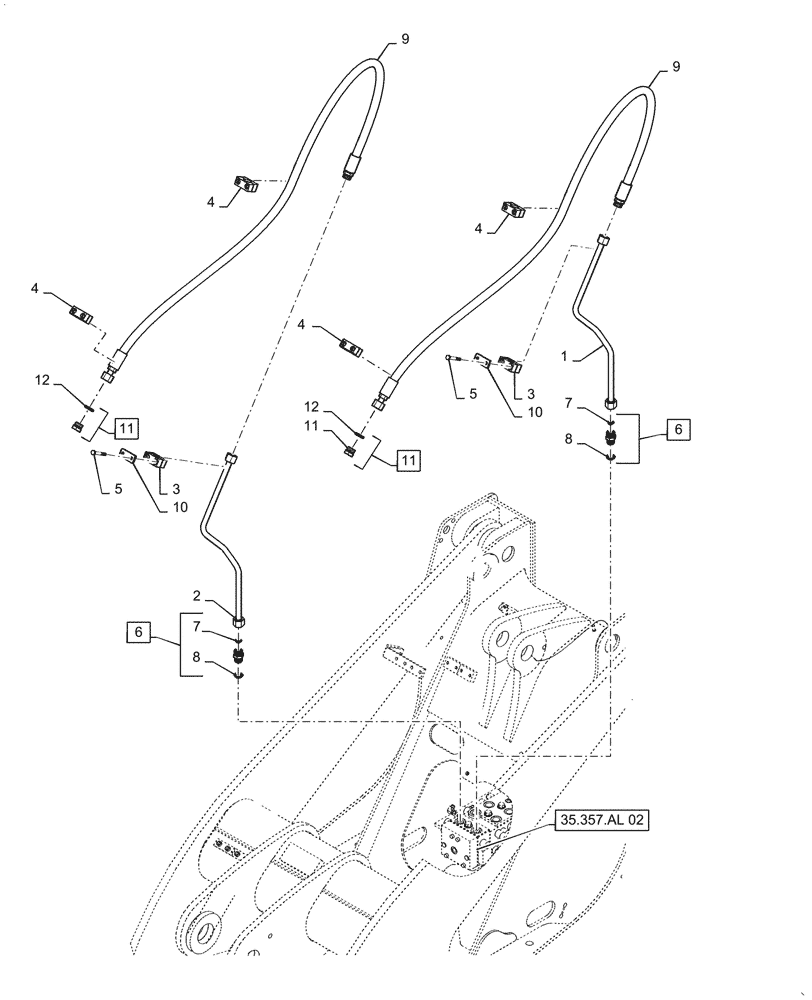

Запчасти Case 521F (35.701.AD[05]) - VAR - 782492, 782495 - THIRD SPOOL AUXILIARY HYDRAULIC LINE INSTALLATION, Z-BAR LOADER (35) - HYDRAULIC SYSTEMS

1

87405793

HYD TUBE,19.05 mm OD x 610, 130 mm L

Third Spool Hydraulic, Left

1шт.

2

87405795

HYD TUBE,19.05 mm OD x 610, 150 mm L

Third Spool Hydraulic, Right

1шт.

3

379374A1

BLOCK

Tube Mounting

2шт.

4

372453A1

BLOCK

Tube Mounting

4шт.

5

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

6

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 7, 8

2шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

9

391131A2

HOSE ASSY.

Third Spool Z Bar

2шт.

10

367658A1

PLATE

Clamp Cover

2шт.

11

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl 12

2шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
