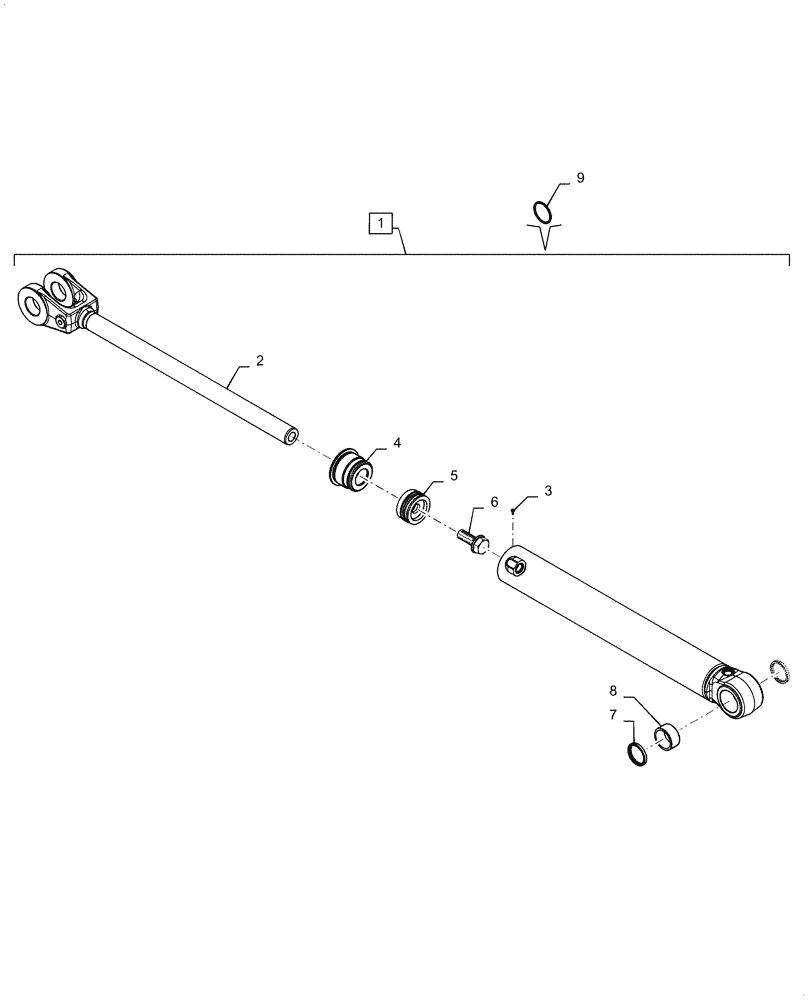

Запчасти Case 521F (35.701.CB[05]) - TILT CYLINDER, XT (35) - HYDRAULIC SYSTEMS

1

87446958

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 758.3mm Stroke

Tilt, Incl 2 - 8

1шт.

2

87446964

CYLINDER,58.75mm OD x 1068.3mm L

Rod

1шт.

3

337555A1

GLAND

1шт.

4

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

5

337551A1

PISTON

1шт.

6

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

W/ Washer, Piston to Rod Mounting

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

4шт.

8

87625614

BUSHING,57.44mm ID x 69.95mm OD x 20mm L

4шт.

9

360979A1

SEAL KIT

Incl 3, 5

1шт.
