(55.510.AH[01]) - CAB ROOF HARNESS ASSEMBLY

Запчасти Case 521F (55.510.AH[01]) - CAB ROOF HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

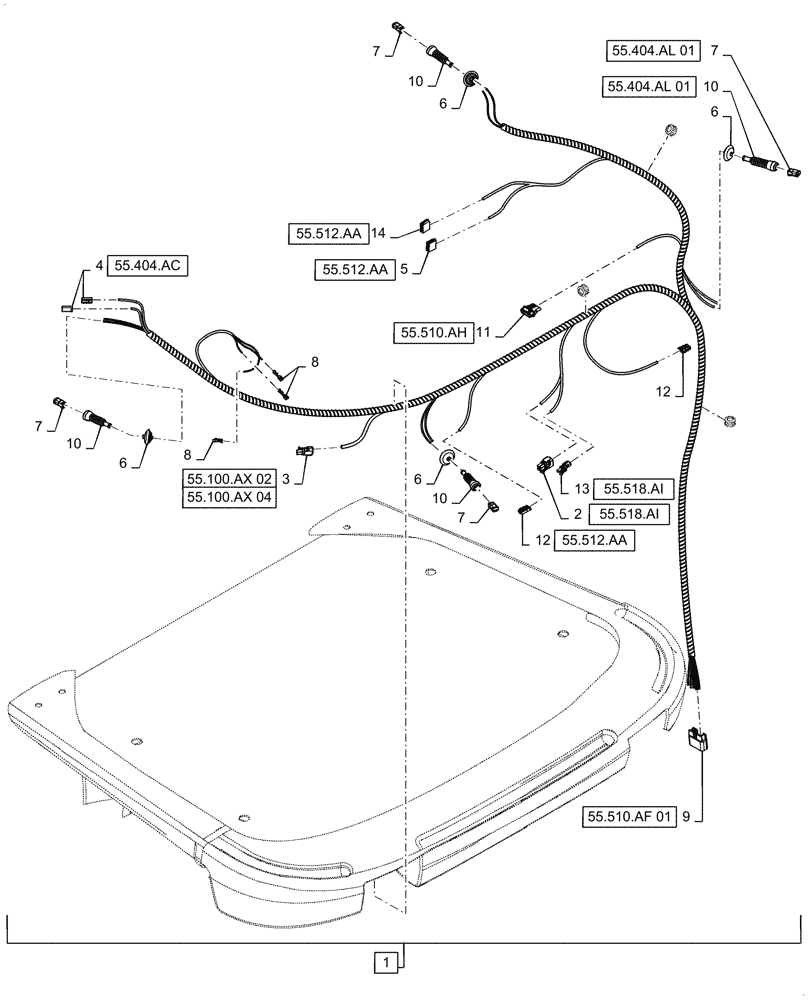

Схема запчастей Case 521F - (55.510.AH[01]) - CAB ROOF HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
55.404.al 01
5
6
8
7
3
10
9
11
10
4
6
13
12
14
10
8
10
7
2
6
7
7
12
1
6
55.512.aa
55.512.aa
55.512.aa
55.100.ax 04
55.100.ax 02
55.518.ai
55.518.ai
55.510.ah
55.510.af 01
55.404.ac
55.404.al 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84284957

HARNESS

Cab Roof Incl 2 - 14

1шт.

2

245715C1

ELEC CONNECTOR,4 Pin

4- Cavity Plug

1шт.

3

245482C1

ELEC CONNECTOR,2 Pin

2- Cavity Plug

1шт.

4

631801C1

CONNECTION

1- Cavity Plug

2шт.

5

292495A1

ELEC CONNECTOR

8- Cavity Plug

1шт.

6

87613497

GUARD

Grommet

4шт.

7

225316C1

ELEC CONNECTOR,Female, 2 Pin

2- Cavity Plug

4шт.

8

NSS

NOT SOLD SEPARAT

PLUG, 2-Cavity, Incl in 1

3шт.

9

388708A1

CONNECTOR, ELEC

Roof to Cab

1шт.

10

84303409

TERMINAL CONNECTOR

Left, Front, Worklight

2шт.

11

87324391

TERMINAL CONNECTOR

SPLICE, 6- Way

1шт.

12

195552A1

ELEC CONNECTOR,Female, 2 Pin

2- Cavity Plug

2шт.

13

245480C1

ELEC CONNECTOR,1 Pin

1- Cavity Plug

1шт.

14

292494A1

ELEC CONNECTOR

8- Cavity Plug

1шт.
