(90.108.AB[01]) - COMMON TO MODEL DECALS

Запчасти Case 521F (90.108.AB[01]) - COMMON TO MODEL DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

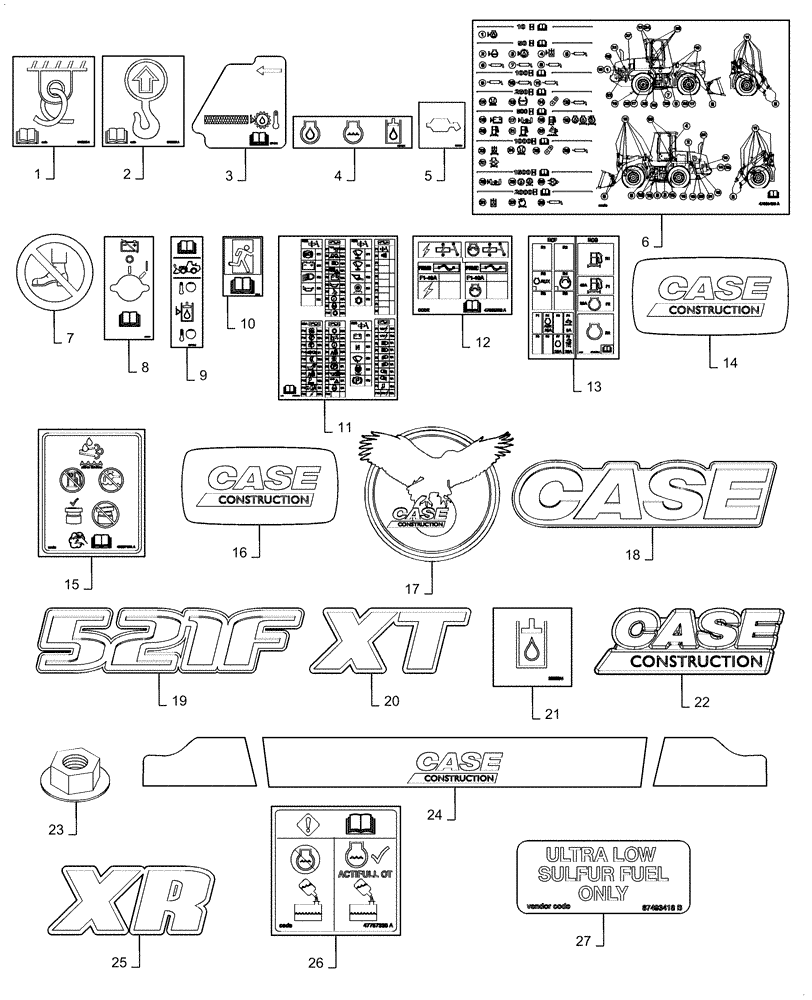

Схема запчастей Case 521F - (90.108.AB[01]) - COMMON TO MODEL DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
9
1
17
14
6
2
27
26
15
24
10
23
16
19
20
4
12
7
22
3
25
8
18
21
11
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84409663

DECAL

Tie Down

4шт.

2

84409662

DECAL

Lift Point

4шт.

3

387148A2

DECAL

Transmission Oil Level

1шт.

4

387149A1

DECAL

Fluid Drains

1шт.

5

187864A1

DECAL

Grease Lube Point

2шт.

6

47635459

DECAL

Maintenance Chart

1шт.

7

E134402

DECAL

No Step

1шт.

8

87450477

DECAL

Disconnect Switch

1шт.

9

386741A2

DECAL

Hydraulic FLuid Temp and Level

1шт.

10

329051A1

DECAL

Emergency Exit

1шт.

11

47579458

DECAL

Fuse

1шт.

12

47505228

DECAL

Fuse

1шт.

13

47822954

DECAL

Fuse and Relay

1шт.

14

84558035

DECAL,70mm x 58mm H

Engine

3шт.

15

47657122

DECAL

DEF

1шт.

16

84558036

DECAL,66mm x 33mm H

Engine Medallion, Die Cast Zinc, 4.4mm Thk

1шт.

17

84468362

DECAL,194mm x 170mm H

Eagle Decal, 170mm

2шт.

18

84495419

DECAL,834mm x 212mm H

Case Logo

2шт.

19

84604895

DECAL

521F Model Number

2шт.

20

84494302

DECAL

XT Decal

2шт.

21

395895A1

DECAL

Hydraulic Oil

1шт.

22

84478049

EMBLEM

Case Logo Emblem, Grille, Use Ref 23

1шт.

23

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

24

84489975

DECAL

Cab Visor

1шт.

25

84489976

DECAL

XR Decal

2шт.

26

47757330

DECAL,50mm x 50mm H

Coolant

2шт.

27

87493418

DECAL,50mm x 21mm H

Ultra Low Sulfur Fuel

1шт.
