(90.116.AC[03]) - VAR - 782509, 782510, 428300 - RH, FENDER, SUPPORT BRACKET

Запчасти Case 521F (90.116.AC[03]) - VAR - 782509, 782510, 428300 - RH, FENDER, SUPPORT BRACKET (90) - PLATFORM, CAB, BODYWORK AND DECALS

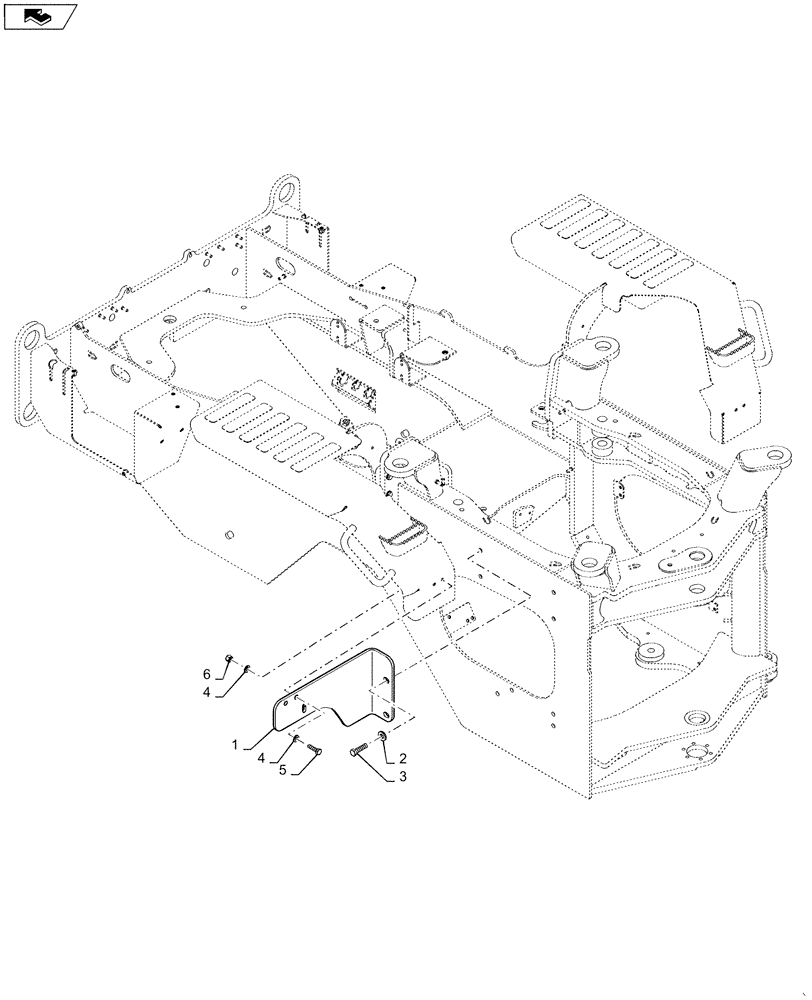

Схема запчастей Case 521F - (90.116.AC[03]) - VAR - 782509, 782510, 428300 - RH, FENDER, SUPPORT BRACKET (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
5
6
2
home
1
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84191127

BRACKET, SUPPORTING

Right Hand Step

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

3

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
