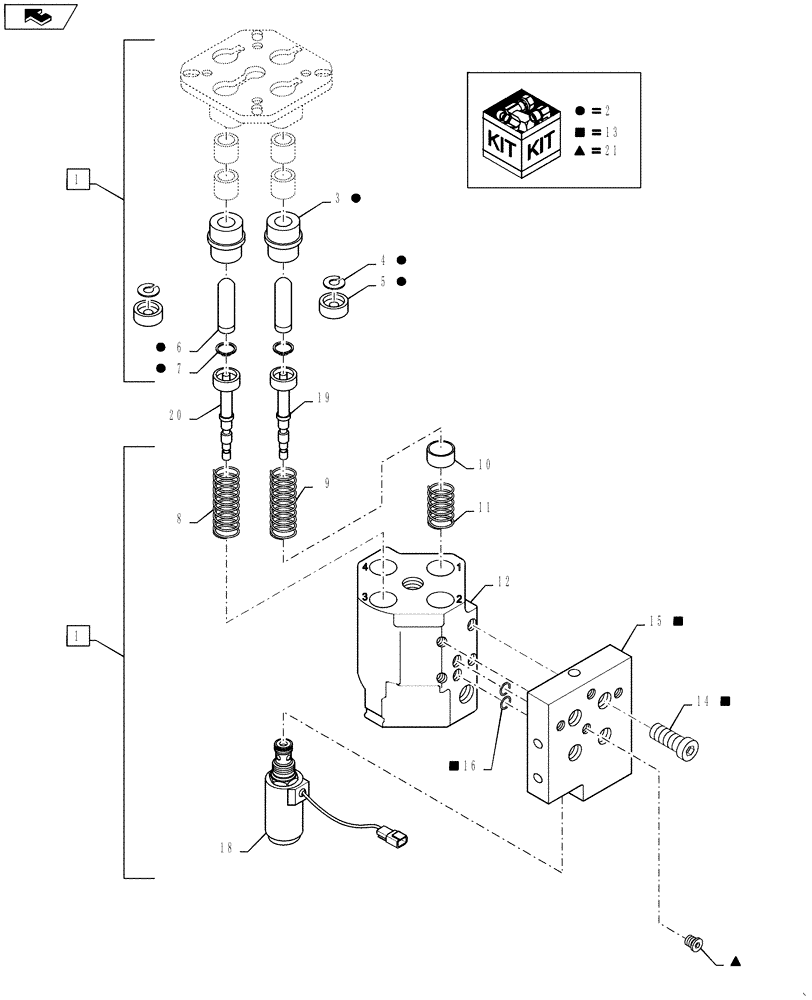

Запчасти Case 621F (55.524.01[02]) - JOYSTICK CONTROL, VALVE ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

87340016

JOYSTICK

Joystick; Incl. 1 - 18; Incl. Fig. 55.524.01 (01)

1шт.

1

87340017

JOYSTICK

Joystick W/ Single Lever; Incl. Refs. 1 - 18; Incl. Fig. 55.524.01 (01) (03)

1шт.

1

87340019

JOYSTICK

Joystick W/ Dual Lever; Incl. Refs. 1 - 18; Incl. Fig. 55.524.01 (01) (04)

1шт.

2

8604521

KIT

Plunger; Used In All Ports; Incl. Refs 3-7

4шт.

3

Guide, Available With 2

2шт.

4

Washer, Available With 2

2шт.

5

Retainer, Available With 2

2шт.

6

Plunger, Available With 2

2шт.

7

Ring, Snap, Available With 2

2шт.

8

87563048

SPRING

SPRING, Set of Two; Use In Ports 2, 4

1шт.

9

87432563

SEAL KIT

Springs; Prefeeling; For Ports 1, 3; Use With 8603083 Control Valve

1шт.

9

8604525

SPRING

Set Of Two; Use In Ports 1, 3

1шт.

10

Socket, Available with 1-3

1шт.

11

Spring, Available with 1-3

1шт.

12

Housing, Available with 1-3

1шт.

13

8604540

REPAIR KIT

Flange; Incl. Refs. 14 - 16

1шт.

14

M6 x 25, Screw, Available with 13

4шт.

15

Flange, Available with 13

1шт.

16

1,5 x 11, O-Ring, Available with 13

2шт.

17

8604541

SEAL KIT,11mm ID x 1.5mm Width

O-Ring; Set Of Two; Not Illustrated, For Item 18

1шт.

18

8604542

SOLENOID VALVE,Joystick Control, 24v

24V; Solenoid

1шт.

19

8604522

REGULATOR

Use In Port 1

1шт.

20

8604523

REGULATOR

Use In Ports 2, 3, 4

3шт.

21

8604550

REPAIR KIT

Plug; Set Of Two; If Used

1шт.
