(55.415.AB[01]) - BUCKET HEIGHT AND RETURN TO TRANSPORT CONTROL, XT/XR

Запчасти Case 621F (55.415.AB[01]) - BUCKET HEIGHT AND RETURN TO TRANSPORT CONTROL, XT/XR (55) - ELECTRICAL SYSTEMS

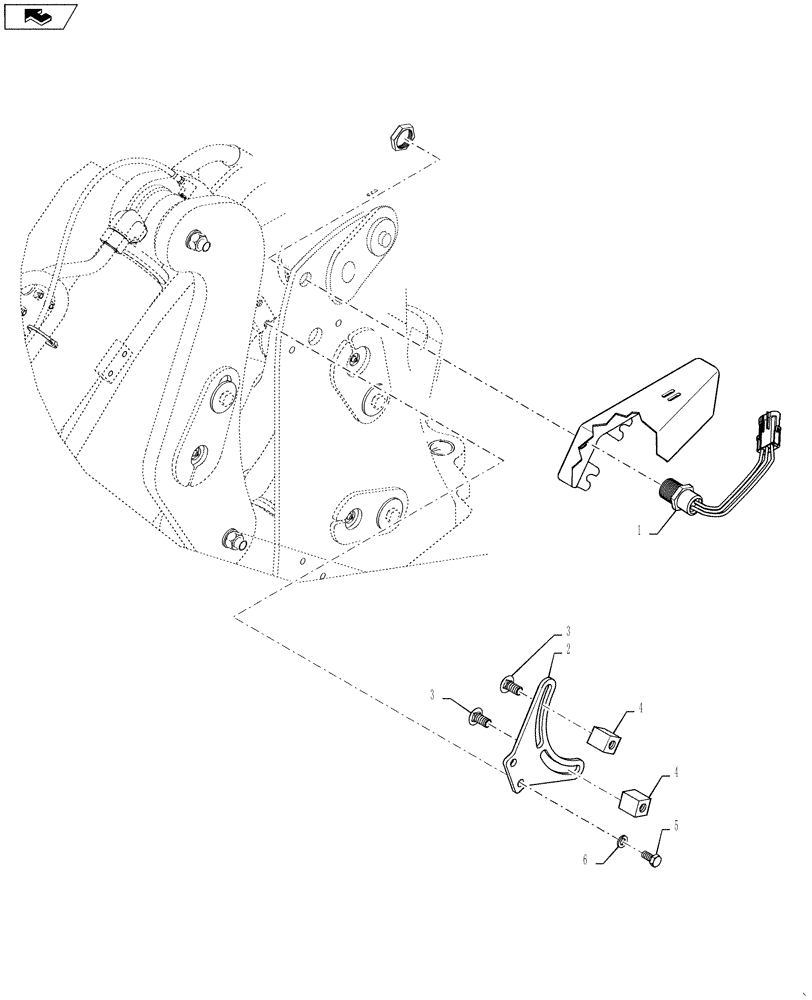

Схема запчастей Case 621F - (55.415.AB[01]) - BUCKET HEIGHT AND RETURN TO TRANSPORT CONTROL, XT/XR (55) - ELECTRICAL SYSTEMS
3
2
5
1
4
4
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1546498C1

SWITCH

Proximity

1шт.

2

379149A2

MOUNTING PLATE

Target Mounting

1шт.

3

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

4

87437102

BLOCK

Proximity Switch

2шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

6

892-11010

LOCK WASHER,M10

2шт.

Выбрано товаров: 6
