(55.100.21) - HARNESS, CAB ROOF

Запчасти Case 721F (55.100.21) - HARNESS, CAB ROOF (55) - ELECTRICAL SYSTEMS

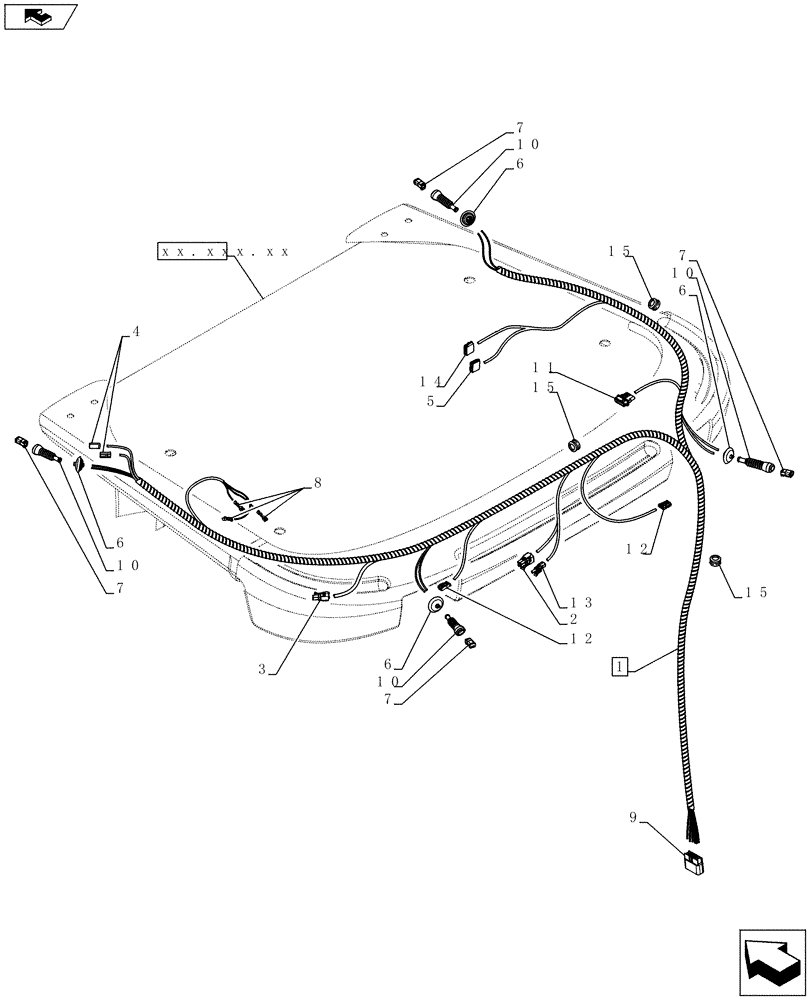

Схема запчастей Case 721F - (55.100.21) - HARNESS, CAB ROOF (55) - ELECTRICAL SYSTEMS
14
12
2
xx.xxx.xx
11
10
home
15
13
5
10
7
12
6
10
3
6
9
10
1
15
7
4
8
6
7
7
6
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84284957

HARNESS

Cab Roof Inc. 2-15

1шт.

2

245715C1

ELEC CONNECTOR,4 Pin

4- Caviety Plug

1шт.

3

245482C1

ELEC CONNECTOR,2 Pin

2- Caviety Plug

1шт.

4

631801C1

CONNECTION

1- Caviety Plug

2шт.

5

292495A1

ELEC CONNECTOR

8- Caviety Plug

1шт.

6

87613497

GUARD

Grommet

4шт.

7

225316C1

ELEC CONNECTOR,Female, 2 Pin

2- Caviety Plug

4шт.

8

NSS

NOT SOLD SEPARAT

PLUG, 2-Caviety

3шт.

9

388708A1

CONNECTOR, ELEC

CONNECTOR

1шт.

10

NSS

NOT SOLD SEPARAT

4шт.

11

NSS

NOT SOLD SEPARAT

SPLICE, 6- Way

1шт.

12

195552A1

ELEC CONNECTOR,Female, 2 Pin

2- Caviety Plug

2шт.

13

245480C1

ELEC CONNECTOR,1 Pin

1- Caviety Plug

1шт.

14

292494A1

ELEC CONNECTOR

8- Caviety Plug

1шт.

15

NSS

NOT SOLD SEPARAT

Butt Splice

5шт.
