(55.047.010[01]) - VAR - 482913, 782442 - ELECTRIC SYSTEM CONTROL, STEERING - W/ JOYSTICK

Запчасти Case 1121G (55.047.010[01]) - VAR - 482913, 782442 - ELECTRIC SYSTEM CONTROL, STEERING - W/ JOYSTICK (55) - ELECTRICAL SYSTEMS

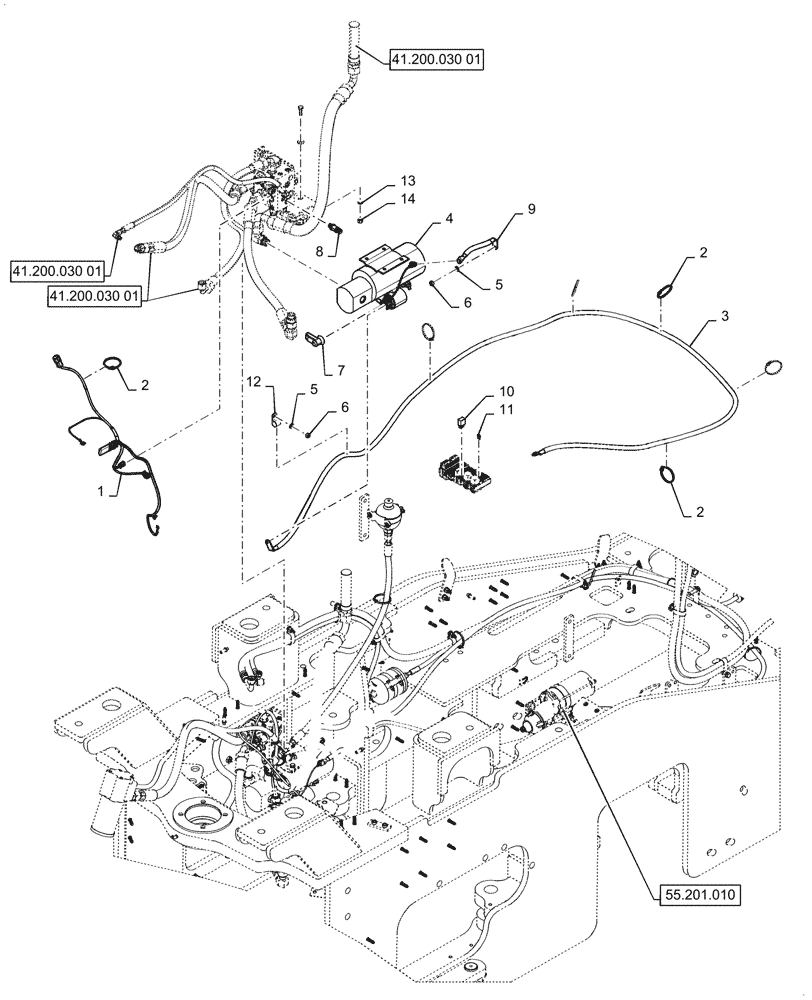

Схема запчастей Case 1121G - (55.047.010[01]) - VAR - 482913, 782442 - ELECTRIC SYSTEM CONTROL, STEERING - W/ JOYSTICK (55) - ELECTRICAL SYSTEMS
41.200.030 01
6
2
3
2
5
7
1
12
8
10
4
5
9
14
11
6
13
2
55.201.010
41.200.030 01
41.200.030 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47806123

WIRE HARNESS

Secondary Steering Module

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

7шт.

3

84389140

ELECTRIC CABLE,3725mm L

Aux Steering

1шт.

4

87581480

ELECTRIC PUMP

Aux Steering

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

7

L126713

BOOT

1шт.

8

84409605

SENSOR

Steering Pressure

1шт.

9

84389141

NEG BATTERY CABLE

1шт.

10

84368717

RELAY

Aux Steering

1шт.

11

84152583

FUSE,7.5A, Mini, Brown

Aux Steering

1шт.

12

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

4шт.
