(82.300.020[02]) - VAR - 424907, 424249 - LOADER BUCKET WITH TEETH 5.1 YD

Запчасти Case 1121G (82.300.020[02]) - VAR - 424907, 424249 - LOADER BUCKET WITH TEETH 5.1 YD (82) - FRONT LOADER & BUCKET

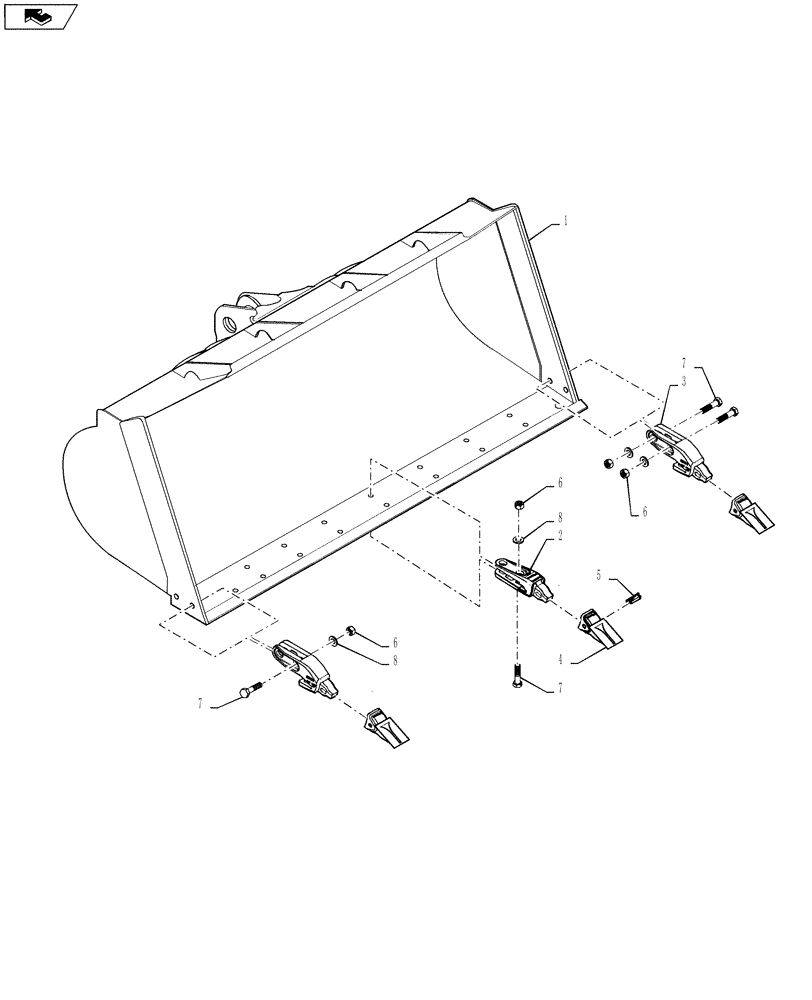

Схема запчастей Case 1121G - (82.300.020[02]) - VAR - 424907, 424249 - LOADER BUCKET WITH TEETH 5.1 YD (82) - FRONT LOADER & BUCKET
8
6
7
4
1
3
7
6
2
6
home
7
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84340642

BUCKET

5.1 Yd With Teeth; Includes Refs 2 - 8

1шт.

2

84168138

TEETH

Adapter Center

2шт.

3

84168142

TEETH

Adapter Corner

7шт.

4

84168139

BUCKET TOOTH POINT

9шт.

5

84168140

BUCKET TOOTH KEY

9шт.

6

429-1016

NUT,1"-8, G8

18шт.

7

426-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

18шт.

8

496-21106

WASHER,1 1/16" x 2" x .209", HDN

18шт.
