(35.357.030[01]) - VAR - 734051, 734052 - CONTROL VALVE, MOUNTING - 2 SPOOL, Z-BAR / XR / LR

Запчасти Case 921G (35.357.030[01]) - VAR - 734051, 734052 - CONTROL VALVE, MOUNTING - 2 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS

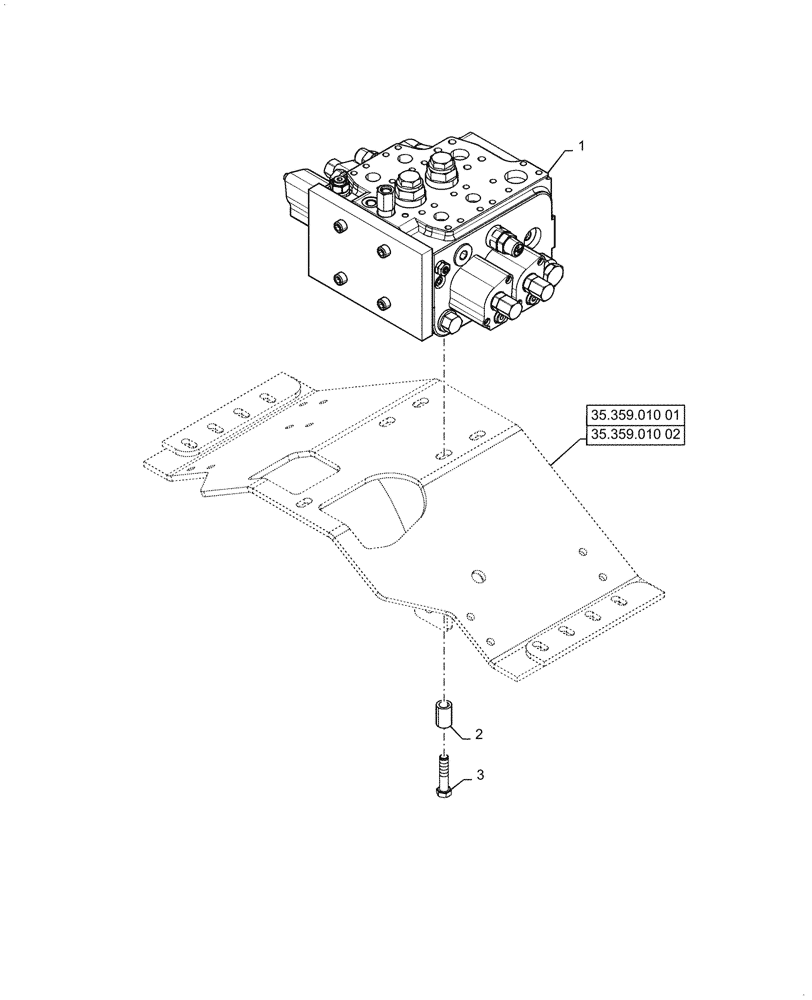

Схема запчастей Case 921G - (35.357.030[01]) - VAR - 734051, 734052 - CONTROL VALVE, MOUNTING - 2 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS
35.359.010 01
1
3
2
35.359.010 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47999455

VALVE

2-Spool, Z-BAR

1шт.

2

A27328

SPACER

3шт.

3

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

3шт.

Выбрано товаров: 3
