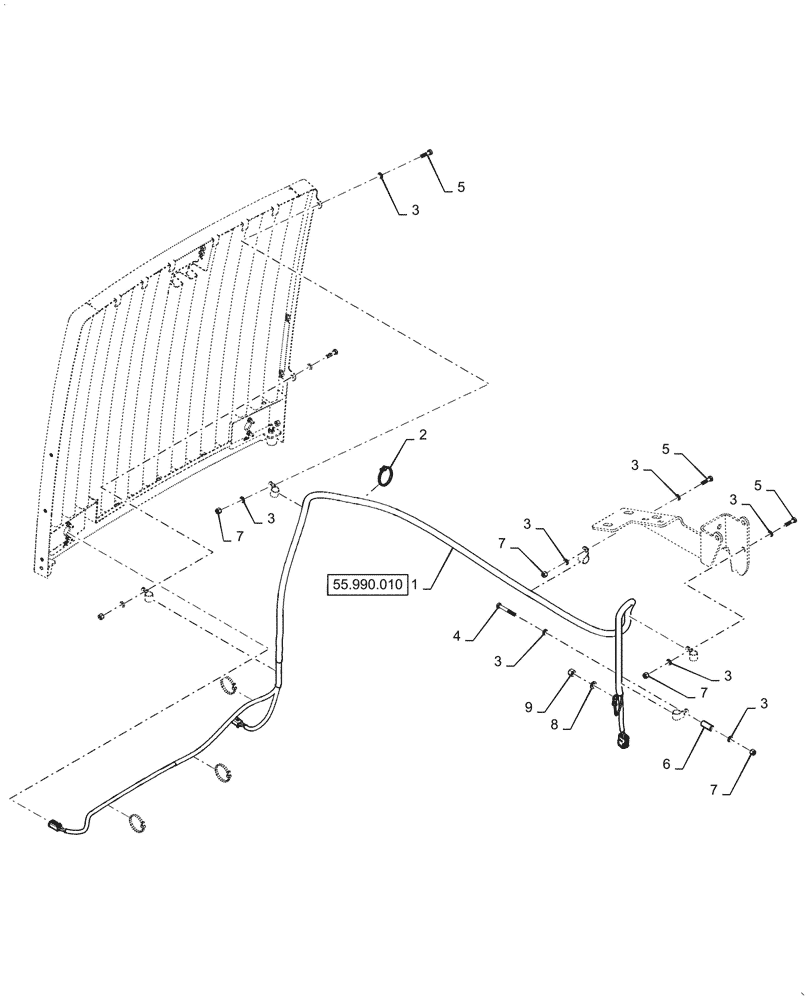

Запчасти Case 921G (55.990.010[01]) - HOOD HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47901519

WIRE HARNESS

Hood

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

6шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

4

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

5

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

6

L126936

SPACER

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
