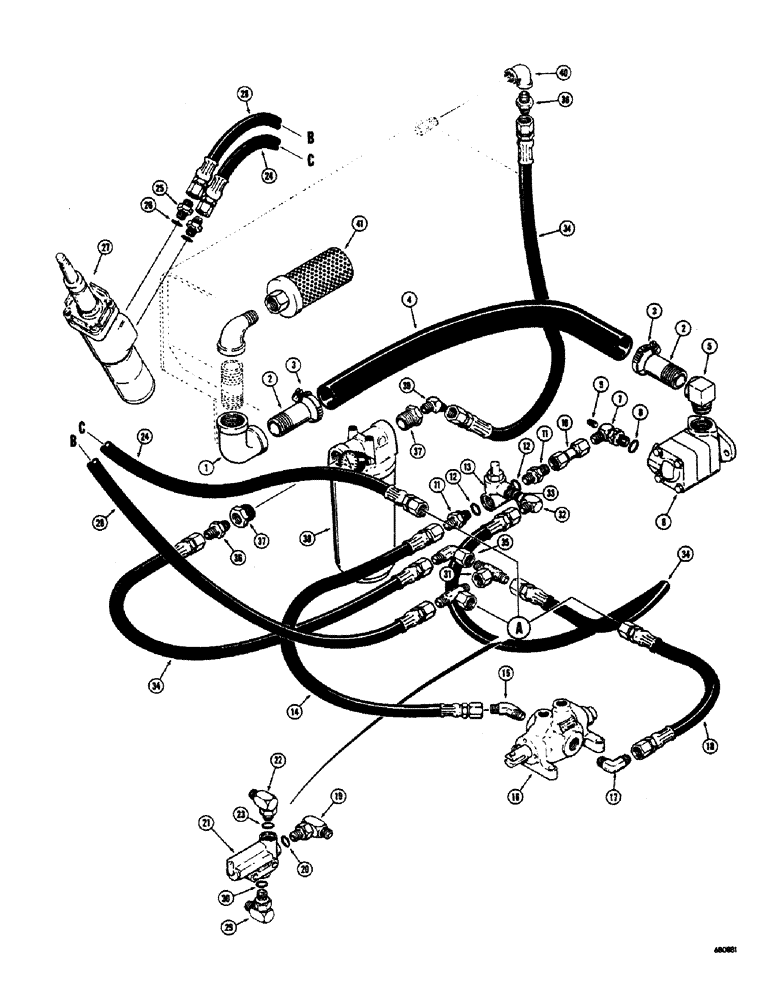

Запчасти Case 300 (108) - PRIMARY HYDRAULICS, USED ON MODELS WITH TORQUE CONVERTER, BEFORE TRACTOR SERIAL NO. 5258 (07) - HYDRAULIC SYSTEM

1

221-396

FITTING

ELBOW - female, 90 degrees (1-1/2" NPT)

1шт.

2

D51418

NIPPLE, LUBE

NIPPLE - pipe (1-1/2" NPT)

2шт.

3

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

4

D45704

HOSE - hydraulic, Serial Range: tank-pump

1шт.

5

221-1570

ELBOW - street, 90 degrees (1-1/4" NPT x 1-1/2" NPT)

1шт.

6

D45177

PUMP - hydraulic, vane type (19 GPM at 2500 RPM at 1500 P.S.I.) Parts list Figure 202

1шт.

7

D45855

ELBOW - adjustable, 90 degrees, Includes: Ref. 8

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

9

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT)

1шт.

10

D45705

TUBE - pump to relief valve

1шт.

11

218-5082

FITTING

CONNECTOR - male, straight, Includes: Ref. 12

2шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

13

D45648

VALVE - relief, hydraulic system (Parts list Figure 114)

1шт.

14

D45856

HOSE - relief valve to dozer control valve (21-1/2" long)

1шт.

15

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- male, 45 degree (3/4" NPT x 3/4" JIC)

1шт.

16

D45649

VALVE - hydraulic, dozer control (Parts list Figure 198)

1шт.

17

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" NPT x 3/4" JIC)

1шт.

18

R11503

HOSE - dozer control valve to flow control valve (16-1/2" long)

1шт.

19

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

D45168

VALVE

- hydraulic, flow control (Parts list Figure 106)

1шт.

22

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

D45851

HOSE - flow control valve to manual steering pump (45-1/2" long)

1шт.

25

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - adjustable, male, Includes: Ref. 26

2шт.

27

D45167

PUMP ASSEMBLY - steering, manual (Parts list Figure 102)

1шт.

28

D45850

HOSE - manual steering pump to hydraulic oil filter (35-1/2" long)

1шт.

29

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

- swivel, side

2шт.

32

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

34

D21788

HOSE

- relief valve to tee, tee to hydraulic oil filter or hydraulic oil filter to tank (31" long)

3шт.

35

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

36

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight (3/4" NPT x 3/4" JIC)

2шт.

37

221-69

BUSHING

- reducing, pipe (1-1/4" NPT x 3/4" NPT)

2шт.

38

D45650

FILTER

- hydraulic oil (Parts list Figure 114)

1шт.

39

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- male, 45 degrees (3/4" NPT x 3/4" JIC)

1шт.

40

221-1378

ELBOW,90º, 3/4" NPT

- female, 90 degrees (3/4" NPT)

1шт.

41

D45816

ELEMENT

FILTER ELEMENT - suction line, magnetic type

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
