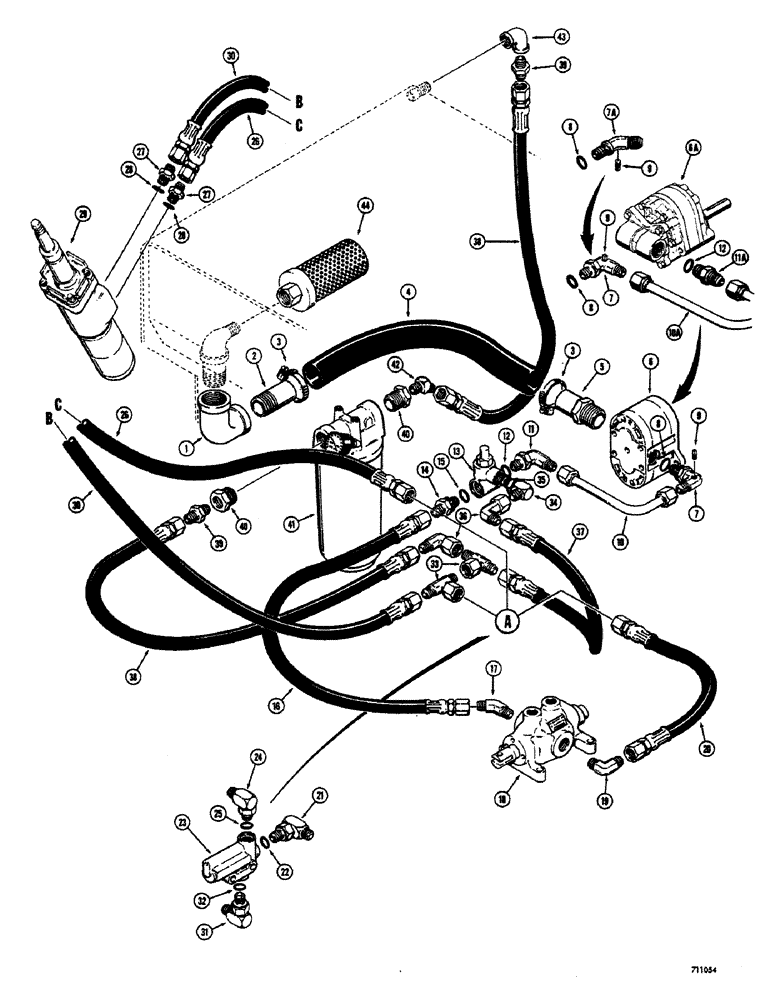

Запчасти Case 300 (110) - PRIMARY HYDRAULICS, USED ON MODELS WITH TORQUE CONVERTER, ON TRACTOR SERIAL NO. 5258 AND AFTER (07) - HYDRAULIC SYSTEM

1

221-391

ELBOW - female, 90 degrees (1-1/2" NPT x 1-1/4" NPT)

1шт.

2

D46068

NIPPLE, LUBE

NIPPLE - pipe (1-1/4" NPT)

1шт.

3

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

4

D45706

HOSE - hydraulic, Serial Range: tank-pump

1шт.

5

A12294

NIPPLE, LUBE

STEM - hose, straight

1шт.

6

D45659

PUMP - hydraulic, gear type (Parts list Figure 204)

1шт.

6a

D54170

PUMP - hydraulic, gear type (Parts list Figure 205A)

1шт.

7

D46220

ELBOW - adjustable, 90 degrees, Includes: Ref. 8

1шт.

D46220 elbow is used on all models D45659 pump and is used on some models with D54170 pump. D47398 elbow is used on some models with D54170 pump only.

1шт.

7a

D47398

ELBOW - adjustable, 45 degree, Includes: Ref. 8

1шт.

D46220 elbow is used on all models D45659 pump and is used on some models with D54170 pump. D47398 elbow is used on some models with D54170 pump only.

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring (D46220 and D47398 elbows)

1шт.

9

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT)

1шт.

10

D45707

TUBE - pump to relief valve (Used with D45659 pump)

1шт.

10a

D40655

TUBE

- pump to relief valve (Used with D54170 pump)

1шт.

11

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degrees (Used with D45659 pump)

1шт.

11a

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight (Used with D54170 pump), Incl. Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring (218-5108 and 218-5064 fittings)

1шт.

13

D45648

VALVE - relief, hydraulic system (Parts list Figure 114)

1шт.

14

218-5082

FITTING

CONNECTOR - male, straight, Includes: Ref. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

16

D45856

HOSE - relief valve to dozer control valve (21-1/2" long)

1шт.

17

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- male, 45 degrees (3/4" NPT x 3/4" JIC)

1шт.

18

D45649

VALVE - hydraulic, dozer control (Parts list Figure 198)

1шт.

19

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" NPT x 3/4" JIC)

1шт.

20

R11503

HOSE - dozer control valve to flow control valve (16-1/2" long)

1шт.

21

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

D45168

VALVE

- hydraulic, flow control (Parts list Figure 106)

1шт.

24

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

D45851

HOSE - flow control valve to manual steering pump (45-1/2")

1шт.

27

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - adjustable, male, Includes: Ref. 28

2шт.

29

D45167

PUMP ASSEMBLY - steering, manual (Parts list Figure 102)

1шт.

30

D45850

HOSE - manual steering pump to hydraulic oil filter (35-1/2" long)

1шт.

31

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

- swivel, side

2шт.

34

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 35

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

36

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

37

D45856

HOSE - relief valve to hydraulic oil filter (21-1/2" long)

1шт.

38

D21788

HOSE

- hydraulic oil filter (31" long)

2шт.

39

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight (3/4" NPT x 3/4" JIC)

2шт.

40

221-69

BUSHING

- reducing, pipe (1-1/4" NPT x 3/4" NPT)

2шт.

41

D45650

FILTER

- hydraulic oil (Parts list page 114)

1шт.

42

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- male, 45 degrees (3/4" NPT x 3/4" JIC)

1шт.

43

221-1378

ELBOW,90º, 3/4" NPT

- female, 90 degrees (3/4" NPT)

1шт.

44

D45816

ELEMENT

FILTER ELEMENT - suction line, magnetic type

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
