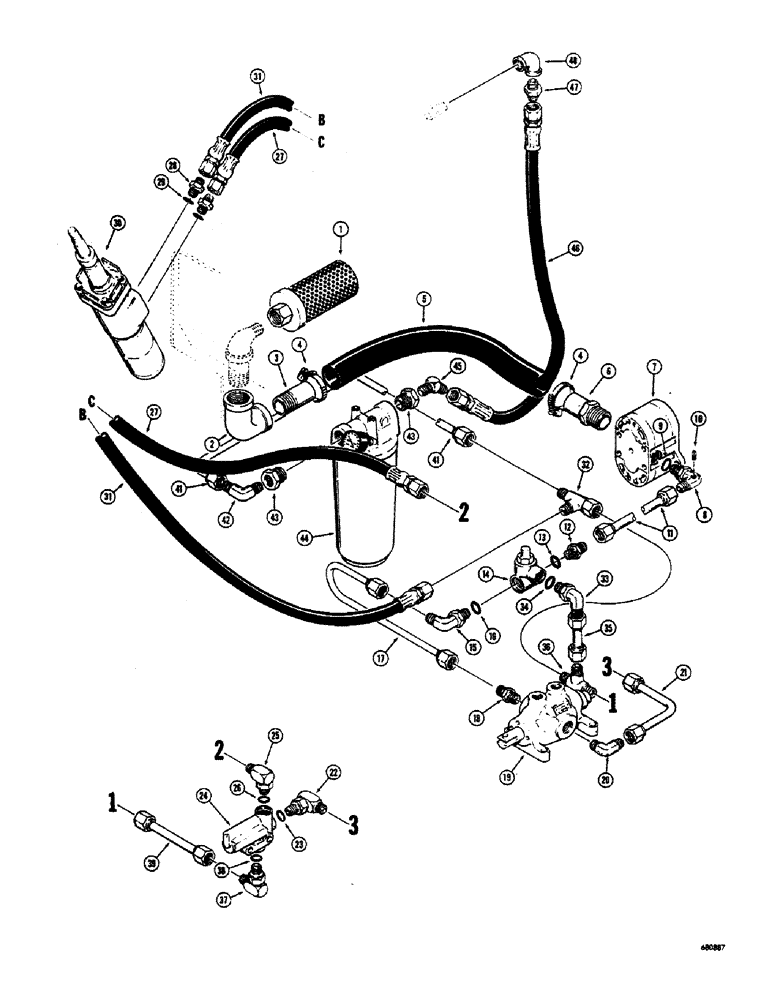

Запчасти Case 300 (112) - PRIMARY HYDRAULICS, USED ON MODELS WITHOUT TORQUE CONVERTER (07) - HYDRAULIC SYSTEM

1

D45816

ELEMENT

FILTER ELEMENT - suction line, magnetic type

1шт.

2

221-391

ELBOW - female, 90 degrees (1-1/2" NPT x 1-1/4" NPT)

1шт.

3

D46068

NIPPLE, LUBE

NIPPLE - pipe (1-1/4" NPT)

1шт.

4

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

5

D45706

HOSE - hydraulic tank to pump, suction side

1шт.

6

A12294

NIPPLE, LUBE

STEM - hose, straight

1шт.

7

D45659

PUMP - hydraulic, gear type (20 G.P.M. at 2500 R.P.M. at 1500 P.S.I.) Parts list Figure 204

1шт.

8

D46220

ELBOW - adjustable, 90 degrees, Includes: Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

10

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT)

1шт.

11

D45705

TUBE - pump to relief valve

1шт.

12

218-5082

FITTING

CONNECTOR - male, straight, Includes: Ref. 13

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

14

D45648

VALVE - relief, hydraulic system (Parts list Figure 114)

1шт.

15

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degrees, Incl. Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

17

D47191

TUBE - relief valve to dozer control valve

1шт.

18

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, straight

1шт.

19

D45649

VALVE - hydraulic, dozer control (Parts list Figure 198)

1шт.

20

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees

1шт.

21

D47188

TUBE - dozer control valve to flow control valve

1шт.

22

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

D45168

VALVE

- hydraulic, flow control (Parts list Figure 106)

1шт.

25

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

D45851

HOSE - flow control valve to manual steering pump (45-1/2" long)

1шт.

28

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - adjustable, male, Includes: Ref. 29

2шт.

30

D45167

PUMP ASSEMBLY - steering, manual (Parts list Figure 102)

1шт.

31

D44130

HOSE - manual steering pump to hydraulic oil filter (43-1/2" long)

1шт.

32

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

33

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

D47189

TUBE - relief, Serial Range: valve-tee

1шт.

36

218-596

TEE,1 1/16"-12 37 Degree

- tube

1шт.

37

D25566

ELBOW

- adjustable, 90 degrees, Includes: Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

D47180

TUBE - flow control, Serial Range: valve-tee

1шт.

41

D47190

TUBE - hydraulic oil return

1шт.

42

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees

1шт.

43

221-69

BUSHING

- reducing, pipe (1-1/4" NPT x 3/4" NPT)

2шт.

44

D45650

FILTER

- hydraulic oil (Parts list Figure 114)

1шт.

45

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- male, 45 degrees (3/4" NPT x 3/4" JIC)

1шт.

46

D21788

HOSE

- hydraulic oil filter (31" long)

1шт.

47

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight (3/4" NPT x 3/4" JIC)

1шт.

48

221-1378

ELBOW,90º, 3/4" NPT

- female, 90 degrees (3/4" NPT)

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
