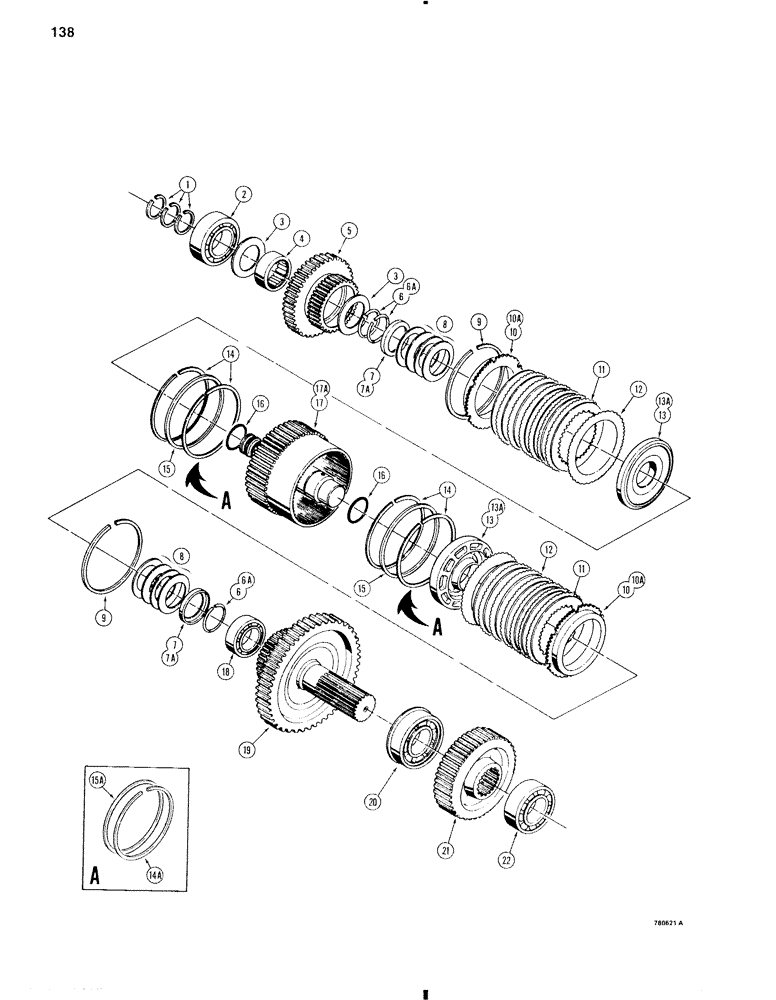

Запчасти Case W11 (138) - TRANSMISSION, SECOND AND REVERSE CLUTCHES (06) - POWER TRAIN

N7791

CLUTCH ASSEMBLY

CLUTCH AND GEAR ASSEMBLY - second and reverse, Incls. Ref. 1-22

1шт.

1

D82936

SEAL

RING - seal

3шт.

2

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

- clutch housing

1шт.

3

D82959

SPACER

- bearing

2шт.

4

D83024

NEEDLE BEARING

- gear

1шт.

5

D82960

GEAR

- reverse

1шт.

6

D83193

RING, SNAP

RING - retaining, round type, if used

8шт.

6a

A65180

SNAP RING,#187, 1.759", Ext

RING - retaining, flat type, if used

3шт.

7

D82993

RETAINER

- spring, used with round snap rings only, Ref. 6

2шт.

7a

N7788

RETAINER

- spring, used with flat snap rings only, Ref. 6A

2шт.

8

D82992

SPRING

BELLEVILLE SPRING - retainer

8шт.

9

D83194

RING

SNAP RING - pressure plate

2шт.

10

D82955

PLATE

PRESSURE PLATE - used in clutches with round retaining rings only, see item 6

1шт.

10a

N7789

RETAINER

PRESSURE PLATE - used in clutches with flat retaining rings only,see item 6A

1шт.

11

D82954

PLATE

DISC - internal tooth

14шт.

12

D83009

LARGE PLATE

DISC - external tooth

14шт.

13

D82953

PISTON

- clutch, used in clutches with round retaining rings only, Fig. 6

1шт.

13a

N7785

RACE

PISTON - clutch, used in clutches with flat retaining rings only, Fig. 6A

1шт.

14

D82952

OIL SEAL

BACKUP RING - piston, used in clutches with round retaining rings, only, Fig. 6

1шт.

14a

N7787

GASKET

BACKUP RING - piston, used in clutches with flat retaining rings, only, Fig. 6A

1шт.

15

D82951

OIL SEAL

RING - seal, used with item 14 in clutches with round retaining rings only, Fig. 6

1шт.

15a

N7786

SEALING RING

RING - seal, used with item 14A in clutches with flat retaining rings only, Fig. 6A

1шт.

16

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- housing

2шт.

17

D82971

HOUSING - clutch, used with round retaining rings only, Ref. 6

1шт.

17a

N7792

SHAFT

HOUSING - clutch, used with flat retaining rings only, Ref. 6A

1шт.

18

A150525

BALL BEARING,1.5748" ID x 2.6772" OD x 0.5906"

- housing to second gear

1шт.

19

D82976

GEAR

- second

1шт.

20

D83032

ROLLER BEARING

- second gear

1шт.

21

D82977

GEAR

- output

1шт.

22

F21219

BEARING

BALL BEARING - shaft

1шт.
