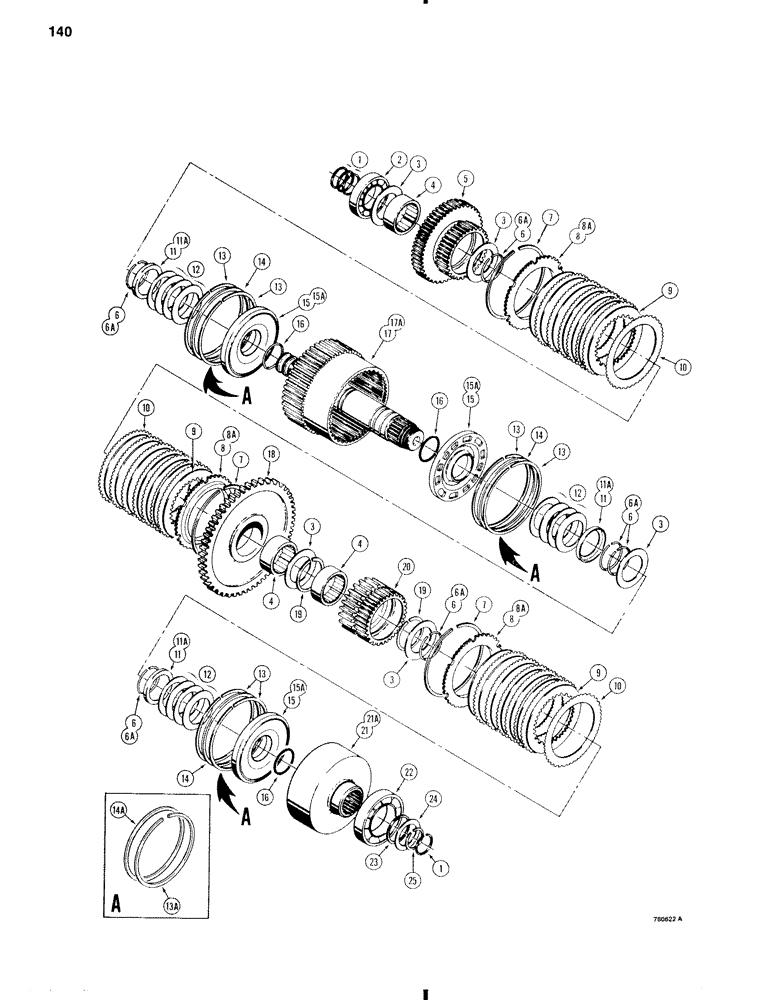

Запчасти Case W11 (140) - TRANSMISSION, FIRST, FORWARD, AND THIRD CLUTCHES (06) - POWER TRAIN

N7869

CLUTCH ASSEMBLY

CLUTCH AND GEAR ASSEMBLY - first, forward, and third clutches, Incls. Ref. 1-25

1шт.

1

D82936

SEAL

RING - seal

4шт.

2

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

- clutch housing

1шт.

3

D82959

SPACER

- bearing

5шт.

4

D83024

NEEDLE BEARING

- gear

3шт.

5

D82960

GEAR

- forward

1шт.

6

D83193

RING, SNAP

RING - retaining, round type, if used

6шт.

6a

A65180

SNAP RING,#187, 1.759", Ext

RING - retaining, flat type, if used

6шт.

7

D83194

RING

SNAP RING - pressure plate

3шт.

8

D82955

PLATE

PRESSURE PLATE - used in clutches with round retaining rings only, Fig. 6

1шт.

8a

N7789

RETAINER

PRESSURE PLATE - used in clutches with flat retaining rings only, Fig. 6A

1шт.

9

D82954

PLATE

DISC - internal tooth

21шт.

10

D83009

LARGE PLATE

DISC - external tooth

21шт.

11

D82993

RETAINER

- spring, used with round retaining rings only, Fig. 6

3шт.

11a

N7788

RETAINER

- spring, used with flat retaining rings only, Fig. 6A

3шт.

12

D82992

SPRING

BELLEVILLE SPRING - retainer

12шт.

13

D82952

OIL SEAL

BACKUP RING - piston, used in clutches with round retaining rings only, Fig. 6

1шт.

13a

N7787

GASKET

BACKUP RING - piston, used in clutches with flat retaining rings only, Fig. 6A

1шт.

14

D82951

OIL SEAL

RING - seal, used with item 13 in clutches with round retaining rings, only, Fig. 6

1шт.

14a

N7786

SEALING RING

RING - seal, used with item 13A in clutches with flat retaining rings only, Fig. 6A

1шт.

15

D82953

PISTON

- clutch, used in clutches with round retaining rings only, Fig. 6

1шт.

15a

N7785

RACE

PISTON - clutch, used in clutches with flat retaining rings only, Fig. 6

1шт.

16

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- housing

3шт.

17

D82970

HOUSING - clutch, used with round retaining rings only, Fig. 6

1шт.

17a

N7870

HOUSING

- clutch, used with flat retaining rings only, Fig. 6A

1шт.

18

D82962

HUB ASSY.

GEAR - third

1шт.

19

D83056

GASKET

SNAP RING - bearing

2шт.

20

D87199

GEAR

- first

1шт.

21

D82957

HUB

DRUM AND HUB - clutch, used with round retaining rings, Fig. 6

1шт.

21a

N7790

HUB

DRUM AND HUB - clutch, used with flat retaining rings only, Fig. 6

1шт.

22

D83013

BEARING

BALL BEARING - housing shaft, outer

1шт.

23

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

- shaft

1шт.

24

A65414

WASHER,38.28mm ID x 55.04mm OD x 1.56mm Thk

THRUST WASHER - bearing

1шт.

25

A57011

SNAP RING,#150, 1.408", Ext

- bearing

1шт.
