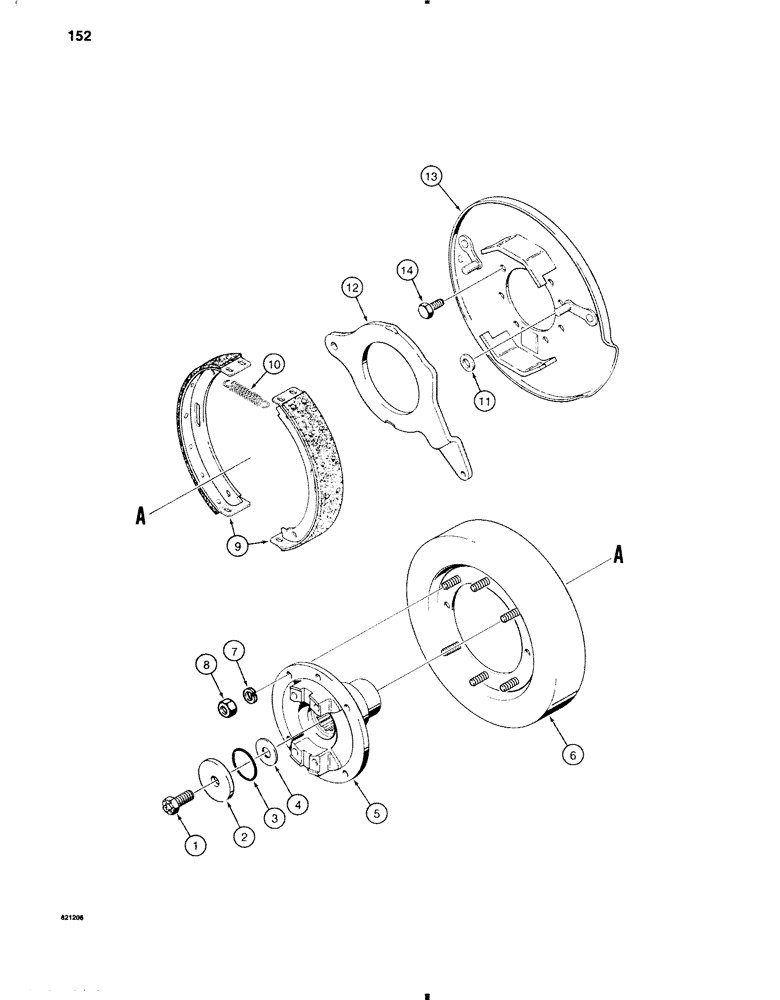

Запчасти Case W11 (152) - TRANSMISSION, YOKE AND BRAKE (06) - POWER TRAIN

1

121-505

BOLT,Hex, Lock, 5/8"-18 x 1 1/4"

- hex head, 5/8" - 18 NF x 1-1/4", grade 8

1шт.

2

D82994

WASHER

RETAINER - yoke

1шт.

3

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- retainer

1шт.

4

D82978

SHIM

- retainer

3шт.

5

D82980

YOKE

- drive shaft connecting

1шт.

6

D83039

BRAKE PACKAGE

DRUM - brake

1шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

6шт.

9

D47524

BRAKE SHOE

SHOE AND LINING - brake

2шт.

10

D83044

SPRING

- shoe

2шт.

11

D83042

SPACER

- lever

1шт.

12

D83041

ARM ASSY.

LEVER - bellcrank

1шт.

13

D83040

BACK PLATE

PLATE - back side

1шт.

14

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

4шт.
