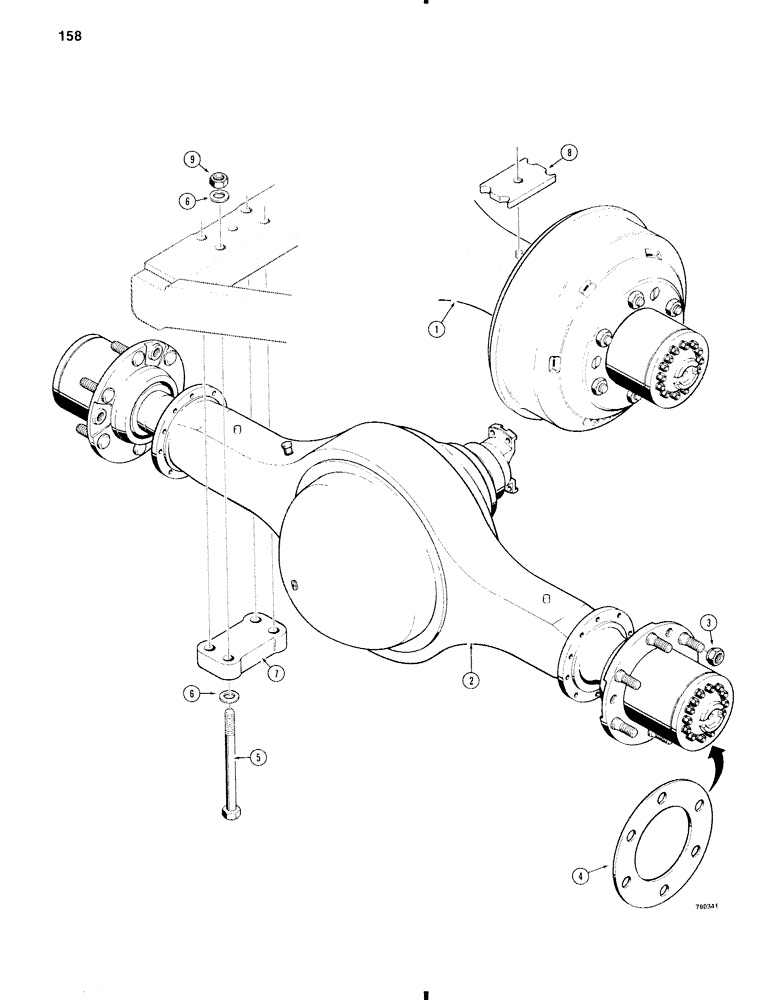

Запчасти Case W11 (158) - AXLE MOUNTING (06) - POWER TRAIN

1

L110131

AXLE

- has brakes, front axle on all models and also rear axle on models with both front and rear brakes, Rockwell No.

1шт.

H172HX18 or No. H172HX26, parts list figures 136 thru 142

1-2шт.

2

L110132

AXLE

- no brakes, rear axle on models with front wheel brakes only, if used, Rockwell No. H172NX27 or H172NX49, parts list pages 137, 141 and 143

1шт.

3

A12522

WHEEL NUT

- lug

24шт.

4

L78655

SPACER - 9.00 x 20 wheels

2шт.

5

116-703

BOLT,Hex, 3/4" - 16 x 9-1/2", Gr 8

Hex, 3/4"-16 x 9 1/2", G8, Front axle

8шт.

5

116-707

BOLT

- hex head, 3/4" - 16 NF x 9", grade 8, rear axle

8шт.

6

L79179

WASHER

- hardened

32шт.

7

L74198

PAD

- lower

4шт.

8

L74199

SPACER

PAD - upper, front axle

2шт.

9

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

16шт.
