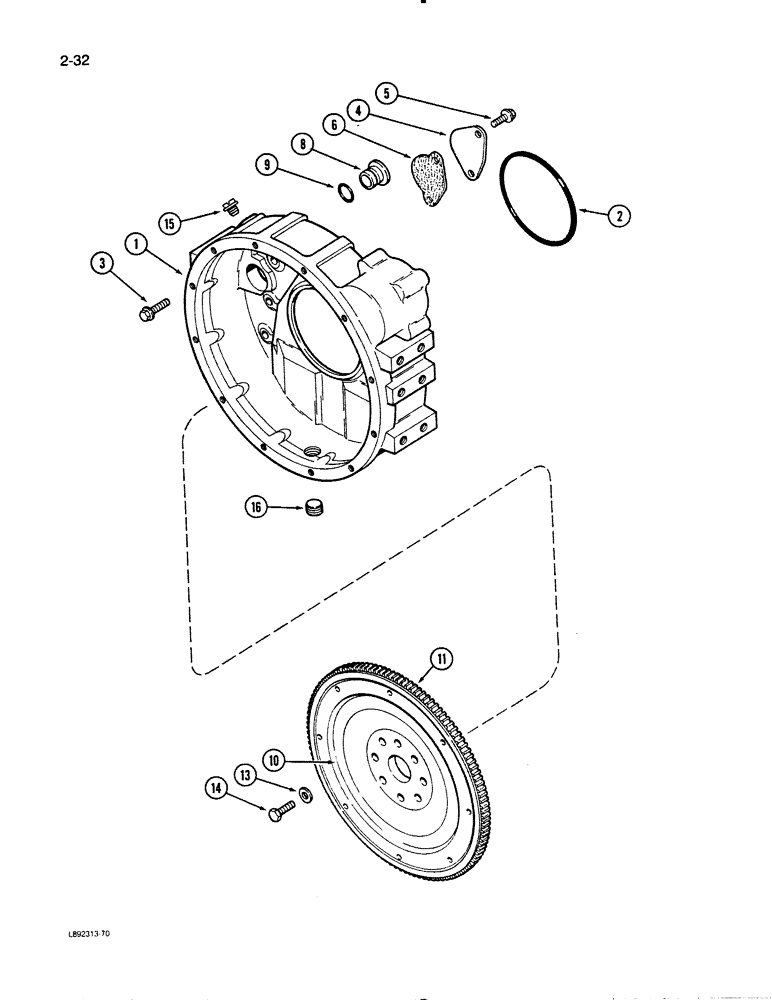

Запчасти Case W11B (2-032) - FLYWHEEL AND HOUSING, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J903282

HOUSING

- flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block (Replaces A157927)

1шт.

3

J910540

FLANGE BOLT,Hex, M12 x 40mm, Cl 10.9

BOLT - hex flange, 12 mm - 1.75 x 40 mm (Replaces J901408)

8шт.

4

J908095

PLATE

- cover

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

- hex, flange, self tapping, 8 mm - 1.25 x 21mm

2шт.

6

J908096

GASKET

- cover plate

1шт.

8

J910248

PLUG

- housing (Replaces J908001)

1шт.

9

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- plug, flywheel housing (Replaces J904469)

1шт.

10

J910284

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 11

1шт.

THE FUNK FLYWHEEL IS J905927

1шт.

Ref: 10A For units w/Clark Transmission only

1шт.

11

J901774

GEAR,Flywheel

GEAR - flywheel

1шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex head, 12 mm - 1.25 x 32 mm

8шт.

15

353-225

PLUG,Sltd Hd, 3/4"-16

- hex head, 3/4 inch NF

1шт.

16

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - square socket head pipe, 3/4 inch PT

1шт.
