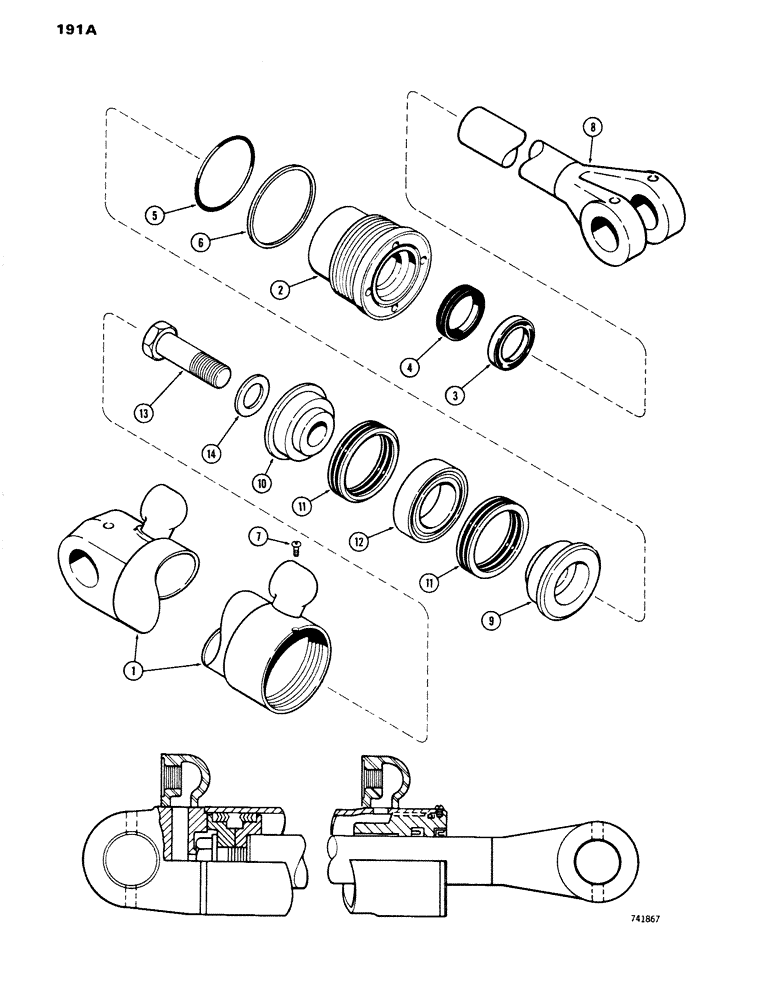

Запчасти Case W14 (191A) - G33864 AND G33865 LOADER LIFT CYLINDERS, GLAND HAS (08) - HYDRAULICS

G33864

LIFT CYLINDER

CYLINDER - lift, R.H. (4-1/2" dia. x 25-3/8" stroke), Includes: Ref. 1 - 14

1шт.

G33865

CYLINDER

- lift, L.H. (4-1/2" dia. x 25-3/8" stroke), Includes: Ref. 1 - 14

1шт.

1

G33866

TUBE

- cylinder body, R.H.

1шт.

1

G33867

TUBE ASSY.

TUBE - cylinder body, L.H.

1шт.

G32731

GLAND

ASSEMBLY, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND AND BUSHING

1шт.

3

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4" x 2-3/4" x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32285

1шт.

4

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod (2-1/4" x 2-3/4" x 7/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32285

1шт.

5

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O"RING - gland (4-1/2" x 4-3/4" x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G32285

1шт.

6

G32284

BACK-UP RING

- gland "O" ring backup

1шт.

Part of Cylinder Repair Seal Kit P/N G32285

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock(#8-32 x 1/4" self tapping)

1шт.

8

G33870

ROD

- piston ( 2-1/4" dia.)

1шт.

9

D46425

PISTON

- split (rod end)

1шт.

10

D46931

PISTON

- split (bolt end)

1шт.

11

D47205

PACKING

- piston ("V" type)

2шт.

Part of Cylinder Repair Seal Kit P/N G32285

1шт.

12

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

13

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

Piston Hex, 1 1/4"-12 x 3", G8

1шт.

14

G32351

WASHER

- piston bolt (1-11/32" x 2-1/2" x 1/8"

1шт.

G32285

SEAL

KIT - cylinder repair, Includes: Ref. 3, 4, 5, 6 and 11

1шт.
