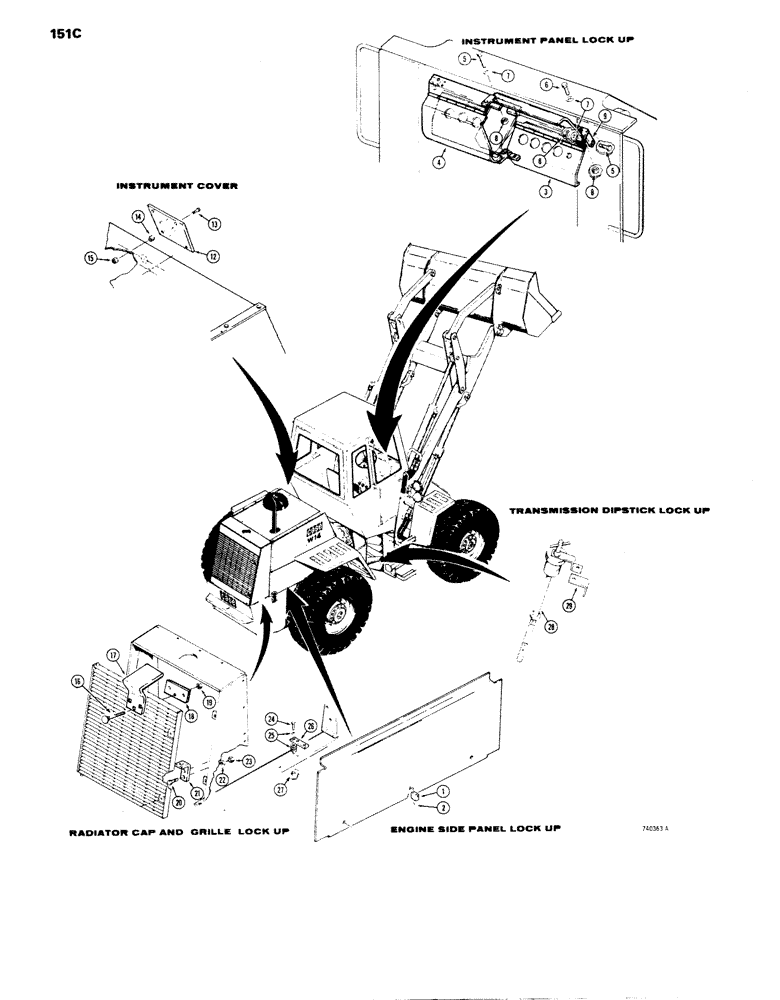

Запчасти Case W14 (151C) - LOCKUP PARTS, MODELS WITHOUT BACKHOE, PADLOCKS AND KEYS (09) - CHASSIS

1

D40678

LOCK

PADLOCK - use R29555 lock and R29554 key, Includes: Ref. 2

5шт.

2

D40679

KEY

- padlock

2шт.

1

R29554

LOCK

PADLOCK - tractor lockup, Includes: Ref. 2

5шт.

2

R29555

KEY

- padlock

2шт.

3

L53914

SHIELD - instrument panel (R.H.), instrument panel lockup models without instrument cluster

1шт.

4

L53913

SHIELD - instrument panel (L.H.), instrument panel lockup models without instrument cluster

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Instrument panel lockup models without instrument cluster Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Instrument panel lockup models without instrument cluster Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

7

95-6

WASHER,3/8"

- standard wrot (), instrument panel lockup models without instrument cluster 3/8"

6шт.

8

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC), instrument panel lockup models without instrument cluster

6шт.

9

L50937

BRACKET - shield mounting, instrument panel lockup models without instrument cluster

2шт.

10

RESERVED, instrument panel lockup models without instrument cluster

1шт.

11

RESERVED, instrument panel lockup models without instrument cluster

1шт.

12

L54570

COVER

- tachometer, front panel, tachometer lockup

1шт.

13

71-418

SCREW - machine, fillister head (1/4" - 20 NC x 1 - 1/8"), tachometer lockup

4шт.

14

A31132

SPACER - cover (13/32" long), tachometer lockup

4шт.

15

131-2

NUT,1/4"-20, GB

NUT - hex., lock (1/4" - 20 NC), tachometer lockup

4шт.

16

11-528

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

CARRIAGE, 5/16"-18 x 1 3/4", G2, Radiator cap lockup

3шт.

17

L52467

COVER

- radiator cap access hole, radiator cap lockup

1шт.

18

L50932

PLATE

- cover mounting, radiator cap lockup

1шт.

19

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), radiator cap lockup

3шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Grille lockup Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

21

L52473

BRACKET

- grille lock

1шт.

22

95-6

WASHER,3/8"

- standard wrot (), grille lockup 3/8"

2шт.

23

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC), grille lockup

2шт.

24

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", engine side lockup

4шт.

25

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16"), engine side lockup

16шт.

26

L52502

BRACKET

- engine side panel locking

2шт.

27

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), engine side lockup

4шт.

28

L54054

DIPSTICK

CAP AND DIPSTICK - transmission oil fill lockup

1шт.

29

L55049

SUPPORT

BRACKET - locking, transmission oil fill lockup

1шт.
