(165C) - GLASS AND MOLDINGS, L50462 AND L50581 CABS

Запчасти Case W14 (165C) - GLASS AND MOLDINGS, L50462 AND L50581 CABS (09) - CHASSIS

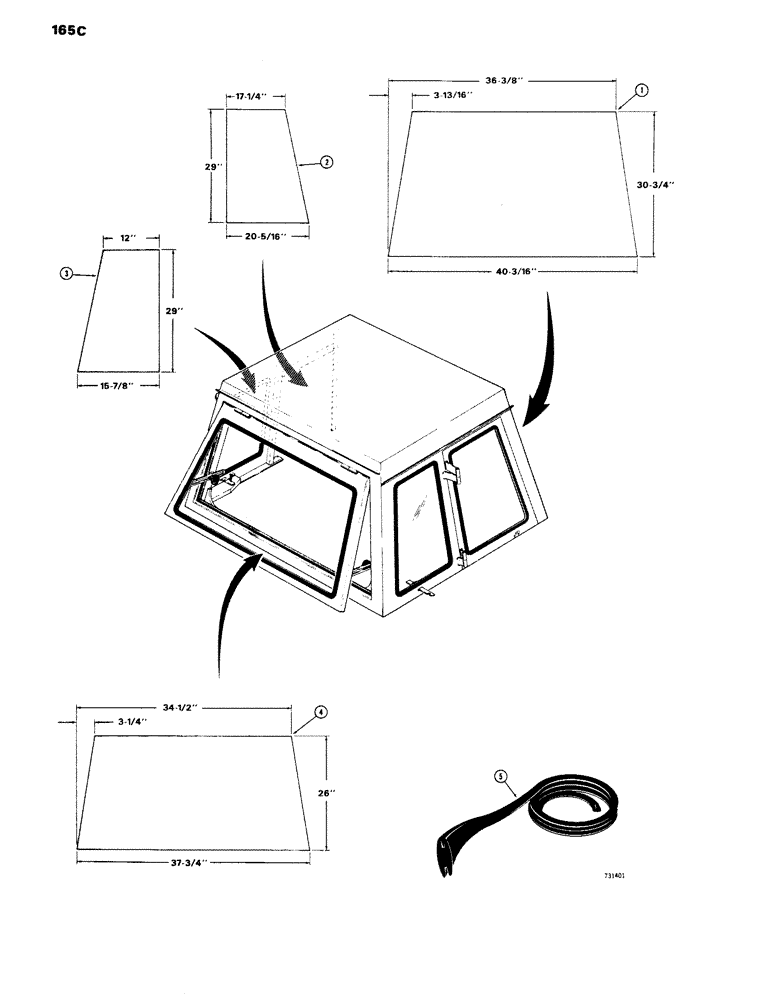

Схема запчастей Case W14 - (165C) - GLASS AND MOLDINGS, L50462 AND L50581 CABS (09) - CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L50462

CAB - all weather (Machinery Item) Sims #1000-135, Includes: Ref. 1 - 4

1шт.

L50581

CAB - ROPS (Machinery Item) Sims #1000-215, Includes: Ref. 1 - 4

1шт.

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

GLASS - door, upper

2шт.

3

REF

INSTRUCTION

GLASS - side panel window

2шт.

4

REF

INSTRUCTION

GLASS - rear window

1шт.

5

L35717

GASKET

MOLDING MATERIAL - 50 ft. roll

1шт.
