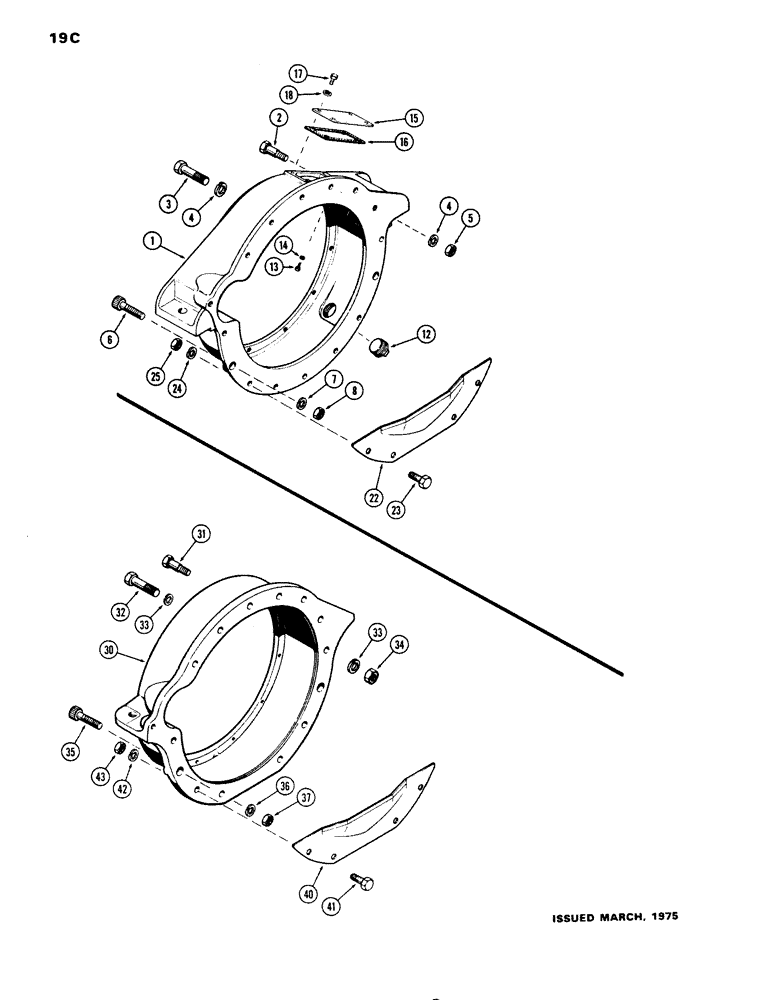

Запчасти Case W14 (019C) - FLYWHEEL HOUSING, (336 BD) DIESEL ENGINE, USED WITH FLEX PLATE DRIVE, 1ST USED ENGINE S/N 2534573 (02) - ENGINE

1

A21040

HOUSING

- flywheel

1шт.

2

A61040

STEP BOLT

BOLT - shoulder ( 1/2"NC x 3") (replaces A61050)

1шт.

2

A61041

STEP BOLT

BOLT - shoulder (1/2"N.C.x 2 7/16" )

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- (1/2 x 1-3/8" N.C. hex) (replaces 13-822 )

3шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-5/8" N.C. hex.) (replaces 13-826)

1шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- (1/2 x 2-1/4" N.C. hex.) (replaces 13-836)

2шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- (3/4 x 3" N.C., 12pt. hd.)

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

25-1012

NUT,3/4"-10, G5

2шт.

12

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - housing (1-1/4" P.T., sq. hd.)

1шт.

13

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

PLUG - housing (1/4 x 1/2" N.C. hex)

2шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

A22584

COVER

PLATE - hand hole

1шт.

16

A22585

GASKET

- hand hole plate

1шт.

17

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Plate Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

18

92-5

LOCK WASHER,5/16"

4шт.

22

A58931

GUARD

SHEILD - dust

1шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Shield Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

24

92-8

LOCK WASHER,1/2"

4шт.

25

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

30

A58684

HOUSING - flywheel, used with ring plate drive used prior to engine ser. no. 2534573

1шт.

31

A61040

STEP BOLT

BOLT - shoulder (1/2' N.C x 3" ), used with ring plate drive used prior to engine ser. no. 2534573

1шт.

31

A61041

STEP BOLT

BOLT - shoulder (1/2"N.C.x 2/7/16"), used with ring plate drive used prior to engine ser. no. 2534573

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- (1/2 x 1-3/8" N.C. hex.) (replaces 13-822 ), used with ring plate drive used prior to engine ser. no. 2534573

3шт.

32

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-5/8" N.C. hex.) (replaces 13-826), used with ring plate drive used prior to engine ser. no. 2534573

1шт.

32

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- (1/2 x 2-1/4" N.C. hex.) (replaces 13-836), used with ring plate drive used prior to engine ser. no. 2534573

1шт.

32

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Used with ring plate drive used prior to engine S/N 2534573

1шт.

33

92-8

LOCK WASHER,1/2"

used with ring plate drive used prior to engine ser. no. 2534573 1/2"

8шт.

34

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.), used with ring plate drive used prior to engine ser. no. 2534573

4шт.

35

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - (3/4 x 3" N.C., 12pt. hd.), used with ring plate drive used prior to engine ser. no. 2534573

2шт.

36

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Used with ring plate drive used prior to engine S/N 2534573 3/4"

2шт.

37

25-1012

NUT,3/4"-10, G5

- 3/4" N.C. hex., used with ring plate drive used prior to engine ser. no. 2534573

2шт.

40

A58931

GUARD

SHEILD - dust, used with ring plate drive used prior to engine ser. no. 2534573

1шт.

41

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used with ring plate drive used prior to engine S/N 2534573 Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

42

92-8

LOCK WASHER,1/2"

used with ring plate drive used prior to engine ser. no. 2534573 1/2"

4шт.

43

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., used with ring plate drive used prior to engine ser. no. 2534573

4шт.
