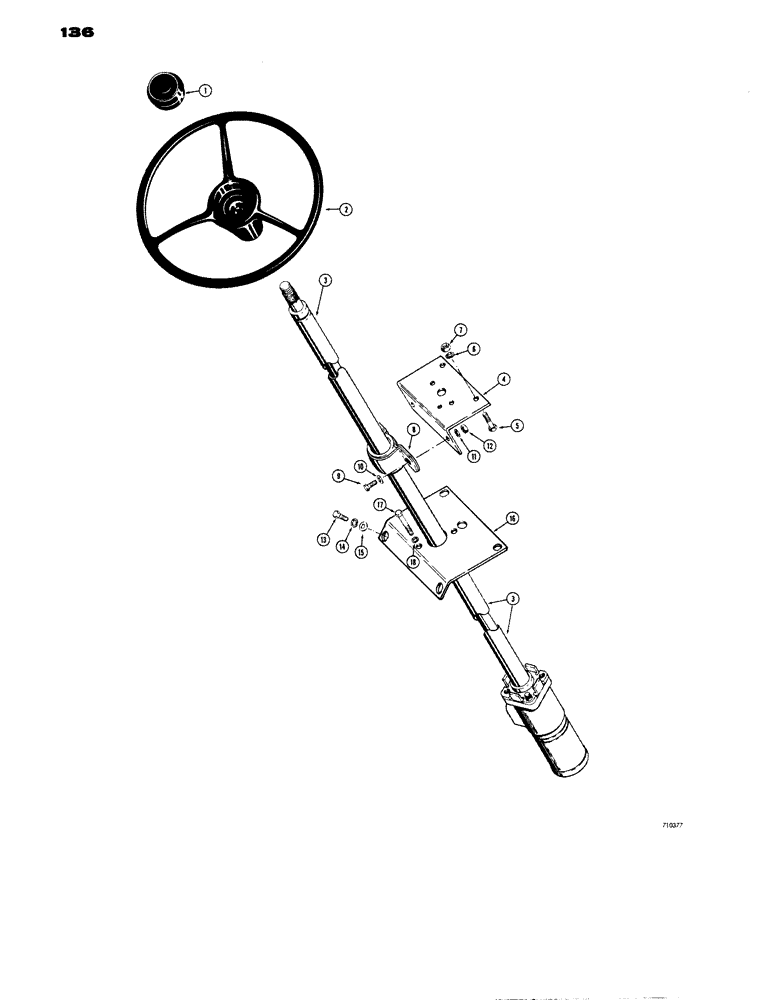

Запчасти Case W14 (136) - STEERING PUMP AND RELATED PARTS (05) - STEERING

1

L18519

CAP

- steering wheel

1шт.

2

L47502

WHEEL

- steering

1шт.

3

L50543

PUMP

ASSEMBLY - steering (Parts list Figure 138)

1шт.

4

L48006

BRACKET

SUPPORT - steering column

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support mounting Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

8

L50073

BEARING CARRIER

BEARING - steering column support

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bearing mounting Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

10

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Plate mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

16

L50000

PLATE - floor, steering alignment (Models without instrument cluster)

1шт.

16

L57727

BRACKET

PLATE - floor, steering alignment (Models with instrument cluster)

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

HHBOLT, (Steering gear to plate mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.
