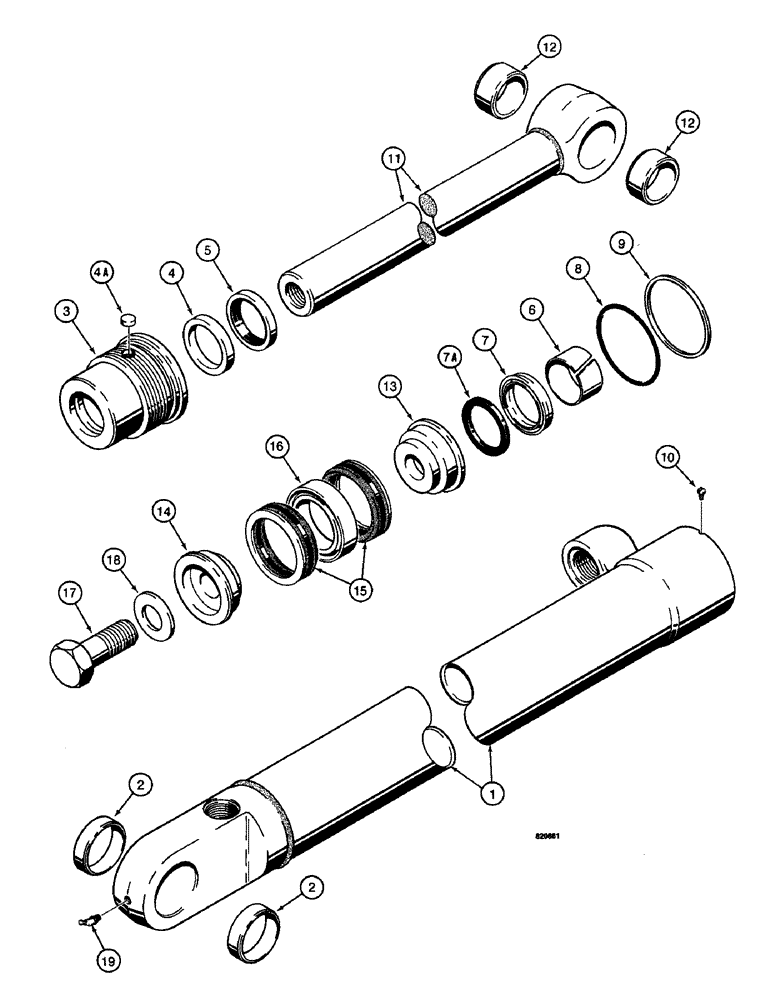

Запчасти Case W14 (492) - G33852 AND G33853 BUCKET CYLINDERS, TWO PIECE PISTON AND 90 DEGREE ROD END PORTS (08) - HYDRAULICS

G33852

CYLINDER

- bucket, right-hand, 3" (76 mm) diameter x 30-1/2" (775 mm) stroke, Includes: Ref. 1 - 19

1шт.

G33853

CYLINDER

- bucket, left-hand, 3" (76 mm) diameter x 30-1/2" (775 mm) stroke, Includes: Ref. 1 - 19

1шт.

1

G33854

TUBE,40.59" L

- G33852 cylinder, Includes: Ref. 2

1шт.

1

G33855

TUBE

- G33853 cylinder, Includes: Ref. 2

1шт.

2

G33858

BUSHING,44.68mm ID x 53.98mm OD x 15.88mm L

- tube

2шт.

G104240

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G34600

RING

- center bushing

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit, P/N G105524

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit, P/N G105524

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of seal kit, P/N G105524

1шт.

7

G100776

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

7a

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow, used in addition to Ref. 7 in some glands

1шт.

Part of seal kit, P/N G105524

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland seal

1шт.

Part of seal kit, P/N G105524

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland

1шт.

Part of seal kit, P/N G105524

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8", if used

1шт.

11

G33860

ROD

- piston, 1-3/4" (44 mm) diameter, Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

13

G33331

PISTON

- split, rod half

1шт.

14

D28896

PISTON

- split, bolt half

1шт.

15

G33151

PACKING

ASSEMBLY - piston

2шт.

Part of seal kit, P/N G105524

1шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

SPACER - packing

1шт.

Part of seal kit, P/N G105524

1шт.

This is for a 4" cylinder and is not necessary to order. If you need the spacer, you need to order G33151 which will include the packing and the spacer. The spacer is NSS

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

- hex head, 1" - 12 NC x 2-1/2", grade 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

1шт.

G105524

GASKET KIT

KIT - seal, Includes: Refs. 5, 6, 7, 7A, 8, 9, 15, 16, same as G34643 kit

1шт.
