(502) - L104137 AND L70430 LOADER CONTROL VALVES, (3 SPOOL PARKER)

Запчасти Case W14 (502) - L104137 AND L70430 LOADER CONTROL VALVES, (3 SPOOL PARKER) (08) - HYDRAULICS

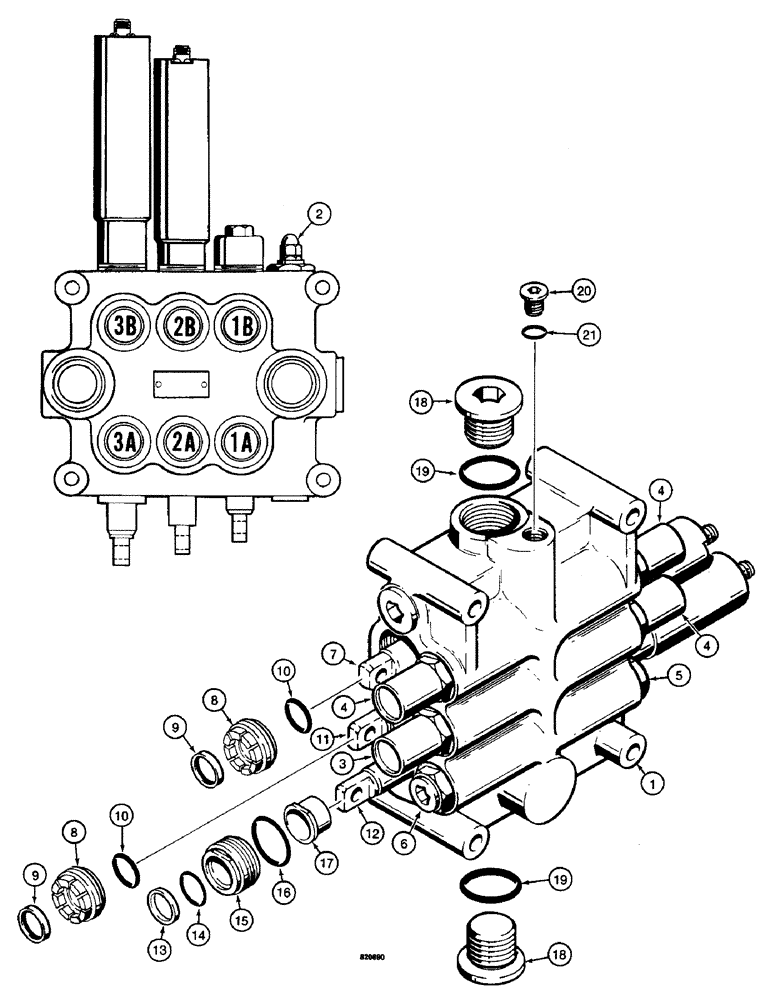

Схема запчастей Case W14 - (502) - L104137 AND L70430 LOADER CONTROL VALVES, (3 SPOOL PARKER) (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L104137

VALVE

CONTROL VALVE - loader, 3 spool, Parker No. VY24DRF2, Includes: Ref. 1 - 21

1шт.

See name plate on valve for identification.

1шт.

L70430

VALVE

CONTROL VALVE - loader, 3 spool, Parker No. VYPSP24DRF2, Includes: Ref. 1 - 21

1шт.

See name plate on valve for correct model number. See figure 244 for other valves.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

L32614

VALVE

MAIN RELIEF VALVE - parts list figure 508

1шт.

3

L33429

VALVE

CIRCUIT RELIEF VALVE - used in port 2A, parts list figure 512, used on VYPSP24DRF2 valve

1шт.

See name plate on valve for correct model number. See figure 244 for other valves.

1шт.

3

L35386

VALVE

CIRCUIT RELIEF VALVE - used in port 2A, parts list figure 510, used on VY24DRF2 valve

1шт.

See name plate on valve for correct model number. See figure 244 for other valves.

1шт.

4

L32633

VALVE

CIRCUIT RELIEF VALVE - used in ports 1A, 1B, and 2B, parts list figure 512, used on VYPSP24DRF2 valve

3шт.

See name plate on valve for correct model number. See figure 244 for other valves.

1шт.

4

L35319

VALVE

CIRCUIT RELIEF VALVE - used in ports 1A, 1B, and 2B, parts list figure 510, used on VY24DRF2 valve

3шт.

See name plate on valve for correct model number. See figure 244 for other valves.

1шт.

5

L35320

VALVE

LOAD CHECK VALVE - used in port 3B, parts list figure 510

1шт.

6

L35321

VALVE

ANTICAVITATION AND LOAD CHECK VALVE - regeneration, used in port 3A, parts list figure 510

1шт.

7

L33751

SPOOL

- auxiliary, parts list figure 508

1шт.

L32607

SEAL

ASSEMBLY - auxiliary and bucket spools, Includes: Ref. 8 and 9

2шт.

8

L32608

RETAINER

AND WIPER - spool

1шт.

9

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

10

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- retainer

2шт.

11

D71228

SPOOL

- bucket, parts list figure 504, used on VYPSP24DRF2 valve

1шт.

See name plate on valve for correct model number. See figure 244 for other valves.

1шт.

11

D71231

SPOOL

- bucket, parts list figure 504, used on VY24DRF2 valve

1шт.

See name plate on valve for correct model number. See figure 244 for other valves.

1шт.

12

D71229

SPOOL

- lift, parts list figure 506, used on VYPSP24DRF2 valve

1шт.

See name plate on valve for correct model number. See figure 244 for other valves.

1шт.

12

D71227

SPOOL

- lift, parts list figure 506, used on VY24DRF2 valve

1шт.

See name plate on valve for correct model number. See figure 244 for other valves.

1шт.

L32610

SEAL

ASSEMBLY - lift spool, Includes: Ref. 13 - 17

1шт.

13

A28211

OIL SEAL

WIPER - spool

1шт.

14

N6577

O-RING

- small

1шт.

15

L32612

RETAINER

- seal

1шт.

16

L32613

O-RING

- large

1шт.

17

L32611

SLEEVE

- spool

1шт.

18

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- hex socket head, 1-5/8"-12 NF, Includes: Ref. 19

2шт.

19

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- plug

1шт.

20

86625138

PLUG,7/18" - 14

Includes Ref. 21 Hex Soc, 7/8"-14 ORB

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.
