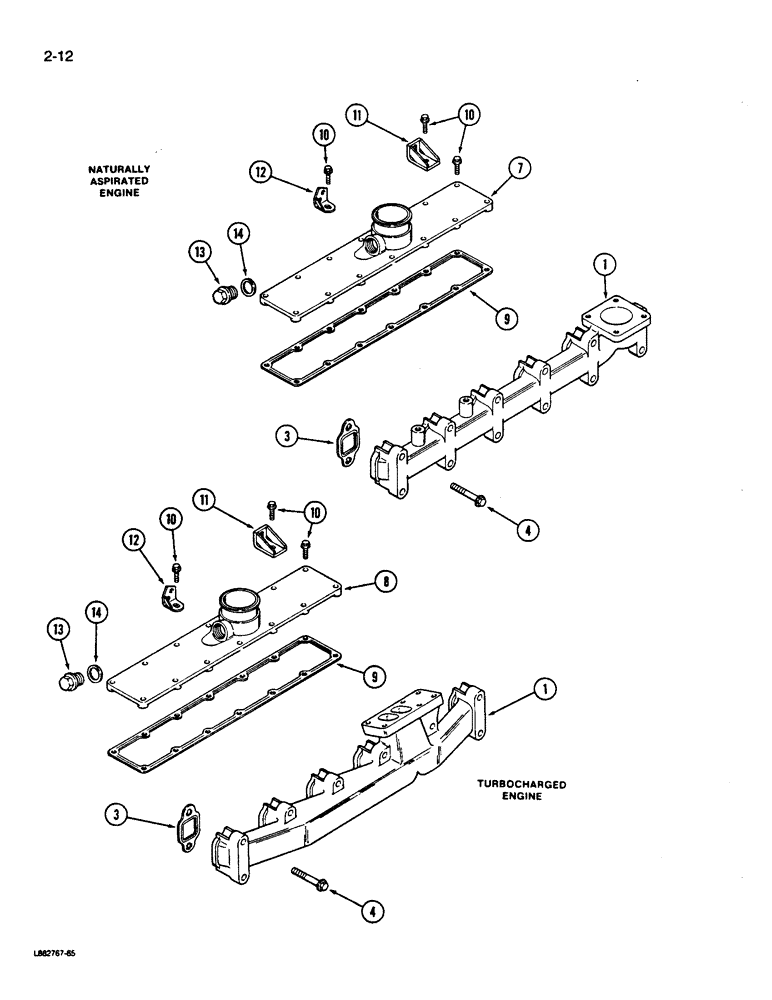

Запчасти Case W14B (2-12) - MANIFOLDS, 6-590 ENGINE, 6T-590 ENGINE, EXHAUST, INTAKE (02) - ENGINE

1

J901326

MANIFOLD

- exhaust, naturally aspirated

1шт.

1

J901683

MANIFOLD

- exhaust, turbocharged

1шт.

3

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

4

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- hex flange, 10 mm - 1.50 x 65 mm (Replaces J901448)

12шт.

7

NSS

NOT SOLD SEPARAT

COVER - manifold (Naturally Aspirated) (Order A77417 kit), intake

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - manifold (Turbocharged) (Order A77418 kit), intake

1шт.

9

J914029

GASKET

- intake cover, intake

1шт.

10

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, (Replaces J904341), Intake Hex Flg Hd, M8 x 1.25 x 25

16шт.

11

REF

INSTRUCTION

BRACKET - fuel line (See Section 3), intake

2шт.

12

REF

INSTRUCTION

BRACKET - fuel line (See Section 3), intake

2шт.

13

J907185

PLUG

ASSEMBLY - manifold (If equipped), intake

1шт.

14

J906773

WASHER

- plug sealing (If equipped), intake

1шт.

A77417

VALVE

KIT - intake manifold (Naturally Aspirated) Includes Ref 7, 13 and 14), intake

1шт.

A77418

KIT

- intake manifold (Turbocharged) Includes Ref 8, 13 and 14), intake

1шт.
