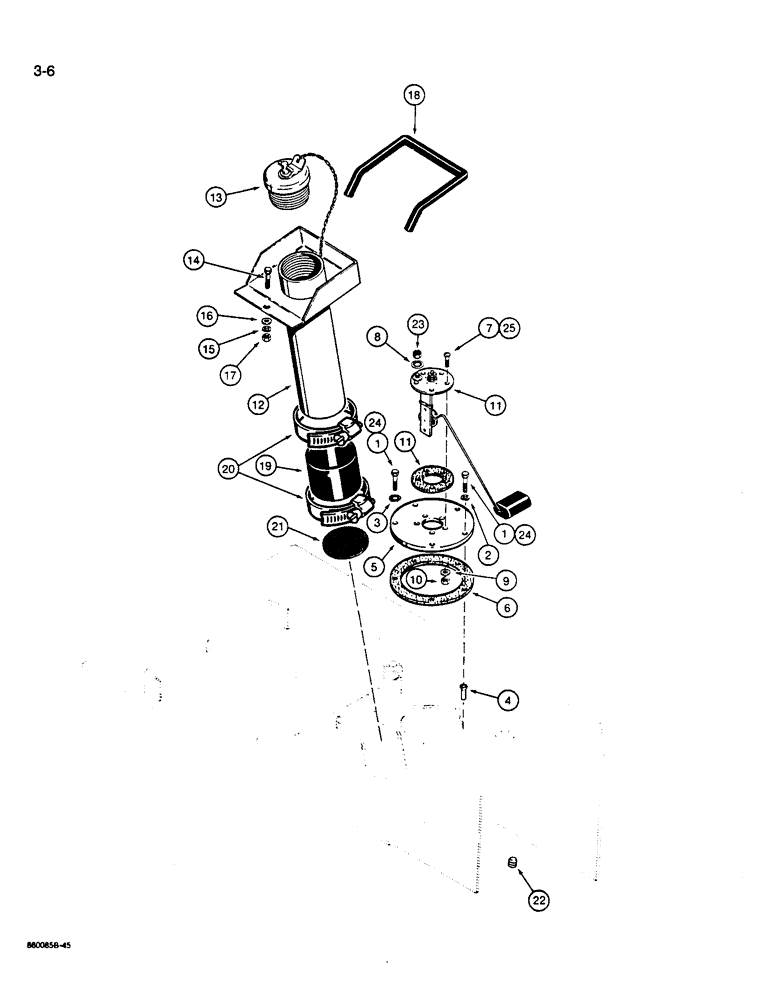

Запчасти Case W14B (3-06) - FUEL TANK FILLER AND SENDER (03) - FUEL SYSTEM

1

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

No longer used, order L108414 self-sealing bolt Hex, 1/4"-20 x 1", G5

5шт.

2

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Used with 113-4 bolt 1/4"

4шт.

3

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external tooth lock, 1/4", plated

1шт.

4

L114565

NUT

- special, 1/4" - 20 NC, if used

5шт.

5

L77441

PLATE

- hand hole cover

1шт.

6

L79876

GASKET,4.57mm Thk

- hand hole cover

1шт.

7

163-15

SCREW,Hex, #10 - 24 x 5/8"

- machine, No. 10 - 24 NC x 5/8", plated, if used

5шт.

8

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

9

L115306

WASHER

- special

5шт.

10

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

5шт.

11

L118306

TRANSMITTER

SENDER - fuel tank, includes gasket

1шт.

L112825

PIPE ASSY.

PIPE AND CAP - fuel filler, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

PIPE - filler

1шт.

13

L74929

FILLER CAP

CAP, FILLER - fuel tank

1шт.

14

113-516

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

- hex head, 5/16" - 18 NC x 1", plated

1шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

16

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

18

D39366

LINING

TRIM - 20" (508 mm) long

1шт.

19

L77270

HOSE,89.00 mm ID x 102.00 mm, SAE 30R2

89 mm ID x 102 mm, SAE 30R2, Filler

1шт.

20

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

2шт.

21

L77398

STRAINER ELEMENT

SCREEN - fuel

1шт.

22

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - square socket head, 3/4" NPT, magnetic, if used

1шт.

23

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, no. 10 - 32 NF, plated

1шт.

24

L108414

BOLT

- special, self-sealing

5шт.

25

163-13

SCREW,Hex, #10 - 24 x 3/4"

- machine, No. 10 - 24 NC x 3/4", plated

5шт.
