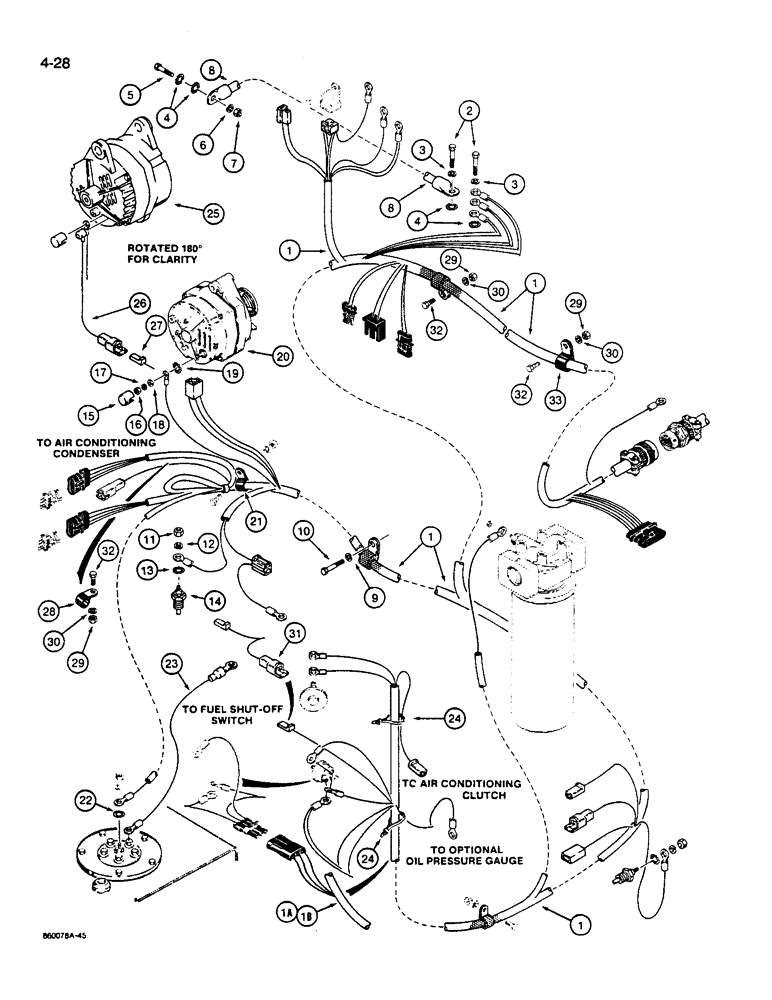

Запчасти Case W14B (4-28) - REAR HARNESS - ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

L118146

HARNESS

- rear, used with Delco alternator

1шт.

1a

L123681

HARNESS

- rear, used with Bosch alternator, uses L106774 plastic cap, Ref. 15, no longer available, order Ref. 1B, L124473 harness

1шт.

1b

L124473

HARNESS

- rear, used with Bosch alternator, has molded rubber alternator output cap

1шт.

2

814-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 16 mm (8.8), plated

2шт.

3

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

2шт.

4

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

4шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

8

L115112

CABLE

- ground

1шт.

9

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

1шт.

10

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 20 mm (8.8), plated

1шт.

11

129-27

NUT,Hex, #10 - 32

- hex, No. 10 - 32 NF

1шт.

12

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

13

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

14

L104249

SWITCH

SENDER - water temperature

1шт.

15

L106774

CAP

- alternator outlet terminal, plastic, if used

1шт.

16

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1, plated

1шт.

17

892-1106

LOCK WASHER,M6

plated M6

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external tooth lock, 1/4", plated

1шт.

20

REF

INSTRUCTION

ALTERNATOR - 45 amp, see Figure 4-36 for mounting parts, parts list Figure 4-2, 4-6 and 4-7A, see Ref. 25 for 65 amp alternator

1шт.

20a

1987378C1

PACKAGE

KIT - alternator adapter, includes (1) A187990 terminal, (1) 825-1408 nut, (1) 892-11008 washer, (1) 825-1405 nut and (1) 892-11005 washer, not shown, used when A187916 replacement alternator is used, see Figure 4-6 and 4-7A

1шт.

21

D31148

CLAMP

- harness

1шт.

22

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

23

L114608

HARNESS

WIRE - ground

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

L114250

ALTERNATOR - 24V, 65 amp, see Figure 4-38 for mounting parts, parts list Figure 4-4, see Ref. 20 for 45 amp alternators

1шт.

26

L109643

HARNESS

WIRE - 65 amp alternator

1шт.

27

223-155

ELEC CONNECTOR,Female, 1 Pin

CONNECTOR - wire

1шт.

28

49838

CLAMP

- harness

1шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

31

L118526

ELECTRICAL WIRE

WIRE - jumper, to fuel shut off, if used

1шт.

32

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

33

D40471

CLAMP

- harness

1шт.
