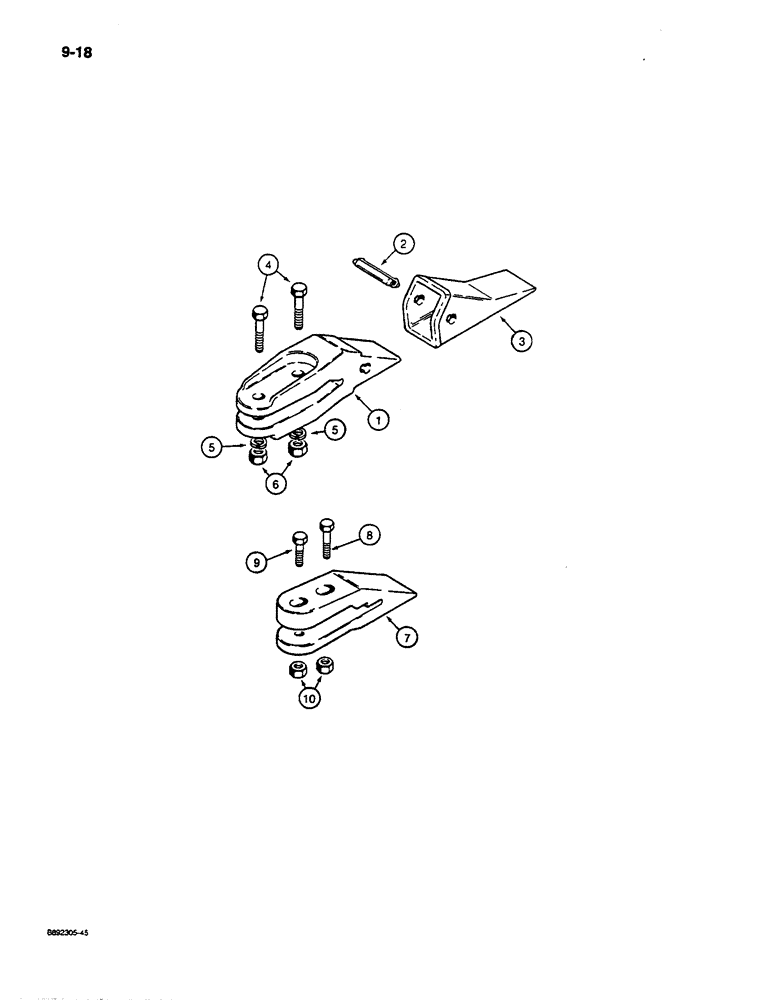

Запчасти Case W14C (9-18) - BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

L123725

TOOTH

ASSEMBLY - bucket with weld on cutting edge

8шт.

1

NSS

NOT SOLD SEPARAT

SHANK - tooth, heavy duty, buckets with weld on cutting edge

1шт.

2

D39448

PIN

- flex, tooth, buckets with weld on cutting edge

1шт.

3

D39090

POINT

- fab tooth, buckets with weld on cutting edge

1шт.

4

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, buckets with weld on cutting edge

16шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Buckets with weld on cutting edge 5/8"

16шт.

6

129-563

NUT,5/8"-11, G8

- hex, 5/8 inch NC, buckets with weld on cutting edge

16шт.

7

D46885

TOOTH

- bucket, clam

7шт.

8

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, front, clam bucket teeth

7шт.

9

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch, Rear, Clam bucket teeth

7шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Clam bucket teeth 1/2"-13, G5

14шт.
