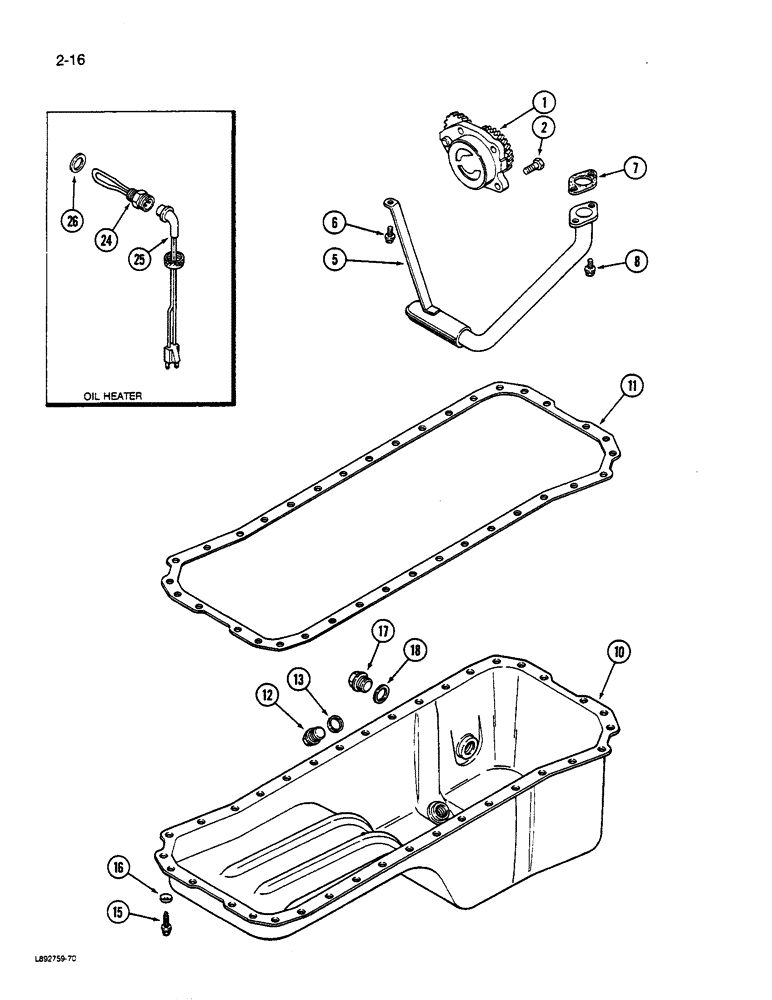

Запчасти Case W14C (2-16) - OIL PUMP AND OIL PAN, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

1

J914006

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine

1шт.

JR914006

PUMP

PUMP ASSEMBLY - engine oil (Remanufactured) (North America only)

1шт.

JC914006

CORE-HYDRAULIC PUMP

RETURN NUMBER - oil pump assembly (Use this part number to return pump core for credit)

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 30, 8.8, Full Thd

4шт.

5

J909373

TUBE

TUBE AND SCREEN - oil suction

1шт.

7

J914383

GASKET

GASKET - mounting, tube

1шт.

Part of oil pan gasket kit P/N A77676

1шт.

8

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

3шт.

10

J915703

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A77492)

1шт.

Part of oil pan gasket kit P/N A77676

1шт.

12

J911638

PLUG,M18 x 1.5

PLUG - drain, oil, magnetic

1шт.

13

J900216

PACKING RING

WASHER - seal, drain plug

1шт.

Part of oil pan gasket kit P/N A77676

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange head, 18 x 16 mm

36шт.

16

J907537

SPRING WASHER

WASHER - spring

36шт.

17

J904386

PLUG

PLUG - pipe

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

A77676

GASKET KIT

GASKET KIT - oil pan, Includes: Ref. 7, 11 and 13

1шт.

A77490

KIT

KIT - heater, engine oil

1шт.

24

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77490), engine, oil

1шт.

25

J905113

CABLE

CABLE - engine block heater, oil

1шт.

26

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug, engine oil heater

1шт.
