(118) - L46456, L52101 AND L55661 TRANSMISSIONS, AXLE OUTPUT SHAFT AND PARKING BRAKE

Запчасти Case W20 (118) - L46456, L52101 AND L55661 TRANSMISSIONS, AXLE OUTPUT SHAFT AND PARKING BRAKE (06) - POWER TRAIN

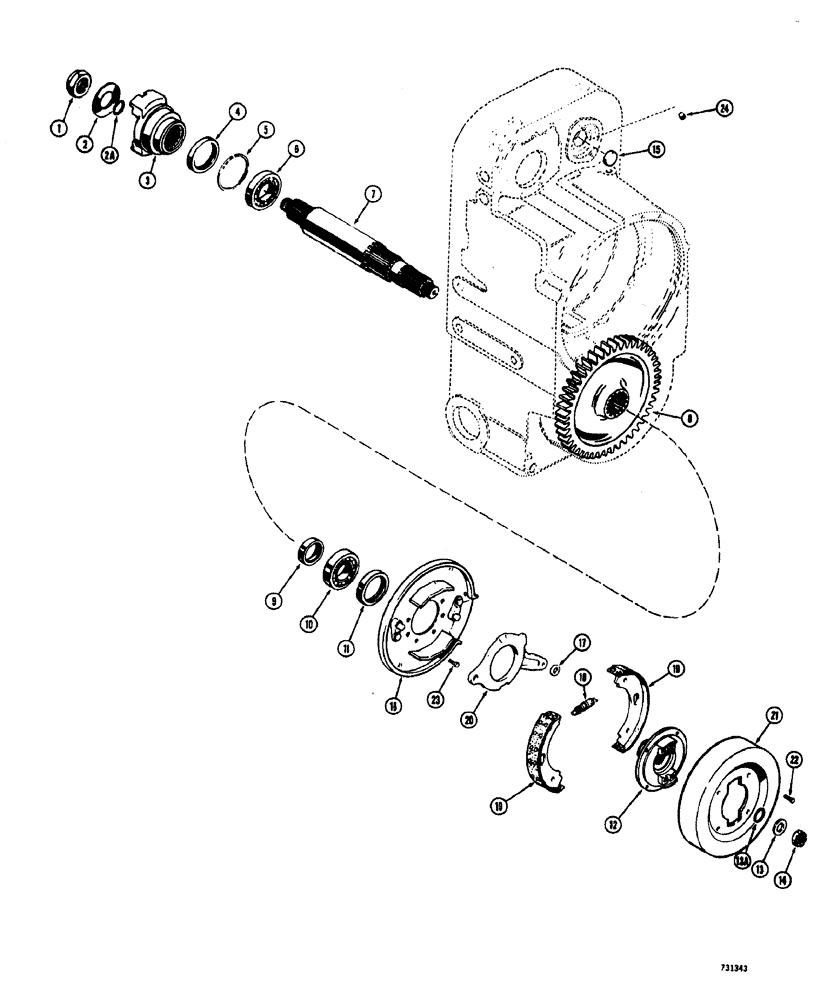

Схема запчастей Case W20 - (118) - L46456, L52101 AND L55661 TRANSMISSIONS, AXLE OUTPUT SHAFT AND PARKING BRAKE (06) - POWER TRAIN
19
10
20
9
22
18
12
19
2
1
2a
13a
23
13
17
7
5
4
8
11
24
21
3
14
15
16
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L31165

NUT

flange washer retaining

1шт.

2

L35979

STOP

WASHER L35973 flange or D47491 shaft

1шт.

2

D47424

WASHER

L36064 flange and L36058 shaft

1шт.

2a

L35973

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL use with L35974 washer

1шт.

2a

D71437

O-RING,1.475" ID x 1.895" OD

SEAL use with D47424 washer

1шт.

3

L32395

FLANGE/Retired FLANGE transmission to rear axle drive shaft, used before transmission S.N. 51828

1шт.

3

L36064

FLANGE

transmission to rear axle drive shaft, used transmission S.N. 51828 and after

1шт.

4

D47485

SEAL

oil

1шт.

5

D47486

SNAP RING

snap internal type

1шт.

6

L31013

BALL BEARING

ball type

1шт.

7

D47491

SHAFT

axle drive, cutout, main, used before transmission S.N. 51828

1шт.

7

L36058

SHAFT

axle drive, output, main, used transmission S.N. 51828 and after

1шт.

8

D47487

GEAR

transfer

1шт.

9

D51506

BUSHING

SPACER bearing

1шт.

10

D47489

ROLLER BEARING

ball type

1шт.

11

D47485

SEAL

oil

1шт.

12

L36055

FLANGE

FLANGE transmission to front axle drive shaft, used before transmission 51828

1шт.

12

L36055

FLANGE

transmission to front axle drive shaft, used transmission S.N. 51828 and after

1шт.

13a

D71437

O-RING,1.475" ID x 1.895" OD

SEAL use with D47424 washer

1шт.

13

D47424

WASHER

L36064 flange and L36058 shaft

1шт.

13

L35974

WASHER

L35973 flange or D47491 shaft

1шт.

13a

L35973

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL use with L35974 washer

1шт.

14

L31165

NUT

flange washer retaining

1шт.

15

L33620

PLUG

housing

1шт.

L33621

BRAKE

ASSEMBLY parking, Includes Ref: 16-21

1шт.

16

L33622

PLATE

backing

1шт.

17

D47523

ROLLER

brake

1шт.

18

F18272

SPRING

brake shoe return

2шт.

19

D47524

BRAKE SHOE

SHOE, BRAKE AND LINING ASSEMBLY

2шт.

D47501 parking brake lining kit is available for service replacement. Includes 2 NSS linings and 24 L33939 rivets.

1шт.

20

D47526

LEVER

brake shoe

1шт.

21

D47527

DRUM

brake

1шт.

22

121-212

LOCK BOLT,Lock Place, Hex, 3/8" - 24 x 5/8", Gr 8

hex head cap, 3/8" - 24 NF x 5/8"

4шт.

23

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

4шт.

24

L33981

PLUG

cup, L52101 transmission only

1шт.
