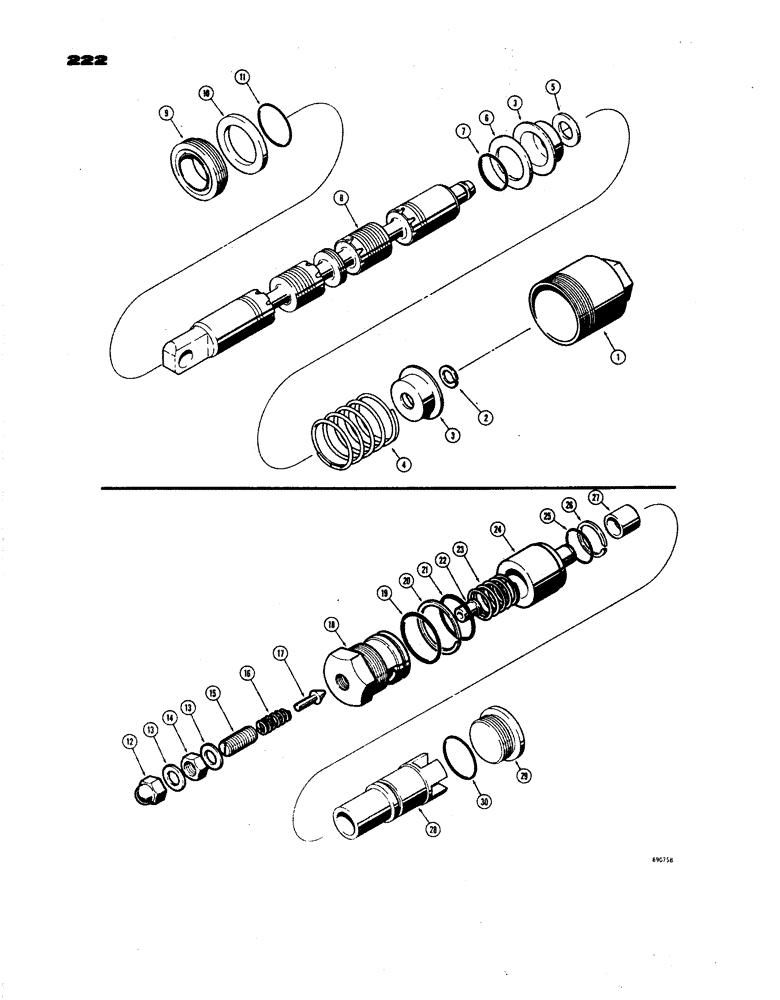

Запчасти Case W24B (222) - L51863, L58354 AND L70433 LOADER CONTROL VALVE, L32592 CLAM SPOOL (08) - HYDRAULICS

L32592

SPOOL

ASSEMBLY - valve, clam, Includes: Ref. 1 - 8

1шт.

1

A13165

CAP

COVER - spool end

1шт.

2

A27020

RING

- retaining, at spool end

1шт.

3

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring

2шт.

4

A13182

VALVE SPRING

SPRING - spool centering

1шт.

5

A25286

WASHER

SPACER - spring seat

1шт.

6

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

7

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve, clam

1шт.

9

L32608

RETAINER

AND WIPER - spool

1шт.

10

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

11

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, spool

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - main relief, all loader control, Includes: Ref. 12 - 30

1шт.

12

129-514

CROWN NUT,Low, 5/16" - 24

- acorn (5/16" - 24 NF), all loader control valves, main relief

1шт.

13

D26270

WASHER, SEALING

WASHER - special, all loader control valves, main relief

2шт.

14

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF), all loader control valves, main relief

1шт.

15

176-298

SCREW,Sl Hdls, 5/16" - 24 x 1 1/2", Flat Pt

- set, relief valve, all loader control, main relief

1шт.

16

D26268

SPRING

- pilot, all loader control valves, main relief

1шт.

17

D26267

PLUNGER

- relief valve, all loader control, main

1шт.

18

L32615

CAP

- relief valve, all loader control, main

1шт.

19

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, valve cap (Large), all loader control, main relief

1шт.

20

L32619

RING

- backup, valve cap, all loader control, main relief

1шт.

21

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O" ring, valve cap (Small), all loader control, main relief

1шт.

22

D26266

SEAT

- plunger, all loader control valves, main relief

1шт.

23

L32617

SPRING

- relief valve, all loader control, main

1шт.

24

L32620

VALVE POPPET

POPPET - relief valve, all loader control, main

1шт.

25

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O" ring, all loader control valves, main relief

1шт.

26

L32619

RING

- backup, all loader control valves, main relief

1шт.

27

L32618

VALVE

SLEEVE - relief valve, all loader control, main

1шт.

28

L32616

SLEEVE

RETAINER - seat, relief valve, all loader control, main

1шт.

29

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

end, spool, all loader control valves, main relief, Includes Ref 30 Hex Soc, 1 3/16"-12 ORB

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, All loader control valves, main relief

1шт.

L32614

VALVE

ASSY, all loader control, main relief

1шт.
