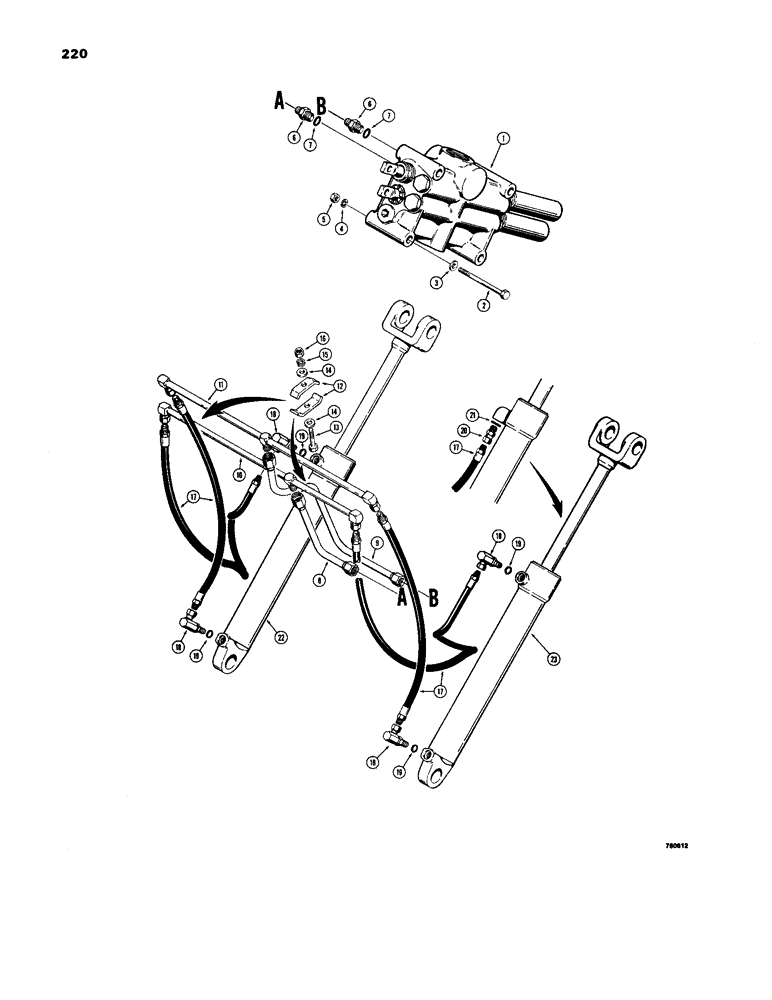

Запчасти Case W24B (220) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic control, see figure 246 and 248 for proper valves

1шт.

2

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

3

95-8

WASHER,1/2"

flat 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

L17737

TUBE,1" OD x 7.05, 4.4" L

- valve to cylinder, rod end

1шт.

9

L17735

HYD TUBE,1" OD

TUBE - valve to cylinder, closed end

1шт.

10

L17748

HOSE

TUBE - manifold, lower

1шт.

11

L17750

MANIFOLD

TUBE - manifold, upper

1шт.

12

R15257

CLAMP

- tube

8шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

17

L17746

HOSE

- 42-1/2" (1079 mm) long

4шт.

18

218-5202

90 ELBOW,90 Degree, 1 1/16"-12 O-Ring x 3/4" NPSM Fem

FITTING - adjustable, 90 degrees, Includes: Ref. 19

2-4шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

218-5250

HYD CONNECTOR,1-1/16" - 12 ORB x 3/4" NPT

FITTING - straight, if used, Includes: Ref. 21

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

22

REF

INSTRUCTION

CYLINDER - lift, LH, see figure 226 for cylinders

1шт.

23

REF

INSTRUCTION

CYLINDER - lift, LH, see figure 226 for cylinders

1шт.
