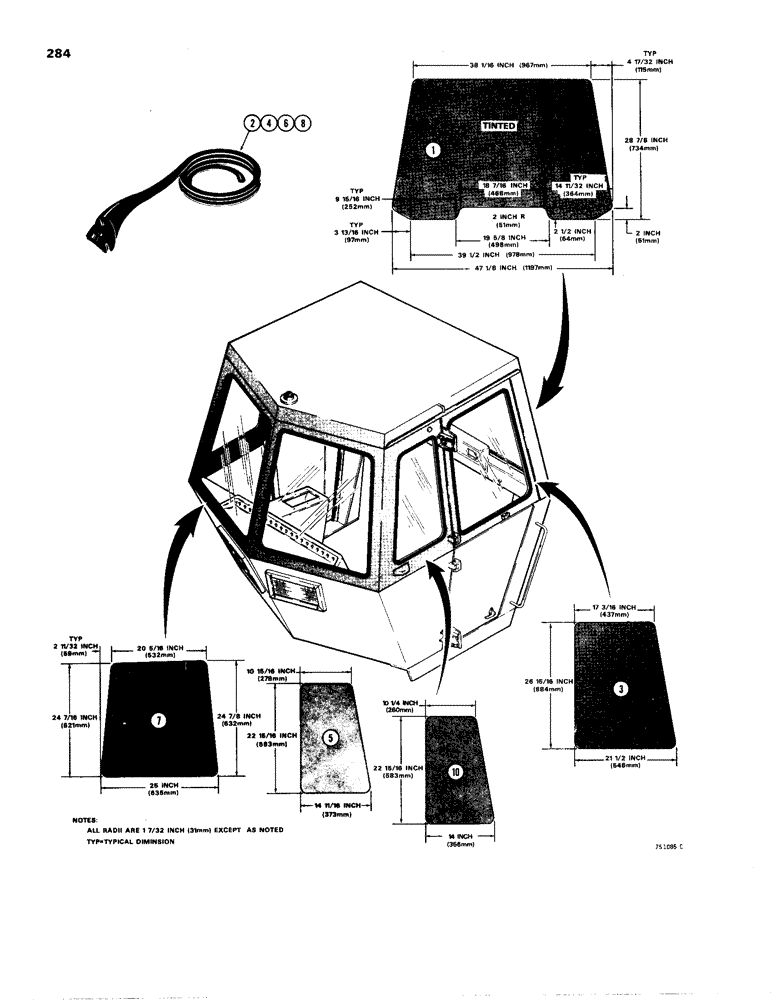

Запчасти Case W24B (284) - CAB GLASS AND MOLDING (09) - CHASSIS

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

MOLDING - windshield, 149" (3785 mm) long, cut from D70593 bulk, used before can sn 27750

1шт.

2

REF

INSTRUCTION

MOLDING - windshield, 149" (3785 mm) long, cut from L35717 bulk, used cab sn 27750 and after

1шт.

3

REF

INSTRUCTION

GLASS - door

2шт.

4

REF

INSTRUCTION

MOLDING - door, 96" (2483 mm) long, cut from D70593 bulk, used before cab sn 27750

2шт.

4

REF

INSTRUCTION

MOLDING - door, 96" (2438 mm) long, cut from L35717 bulk, used cab sn 27750 and after

2шт.

5

REF

INSTRUCTION

GLASS - side panel, used before cab sn 27750

2шт.

6

REF

INSTRUCTION

MOLDING - side panel, 73" (1854 mm) long, cut from D70593 bulk, used before cab sn 27750

2шт.

6

REF

INSTRUCTION

MOLDING - side panel, 73" (1854 mm) long, cut from L35717 bulk, used cab sn 27750 and after

2шт.

7

REF

INSTRUCTION

GLASS - rear window

2шт.

8

REF

INSTRUCTION

MOLDING - rear window, 90" (2489 mm) long, cut from D70593 bulk, used before cab sn 27750

2шт.

8

REF

INSTRUCTION

MOLDING - rear window, 98" (2489 mm) long, cut from L35717 bulk, used cab sn 27750 and after

2шт.

9

D70593

MOLDING

- bulk, 50' (15.2 metres) roll, not shown

1шт.

9

L35717

GASKET

MOLDING - bulk, 50' (15.2 metres) roll, not shown

1шт.

10

REF

INSTRUCTION

GLASS - side panel, used cab sn 27750 and after

2шт.
