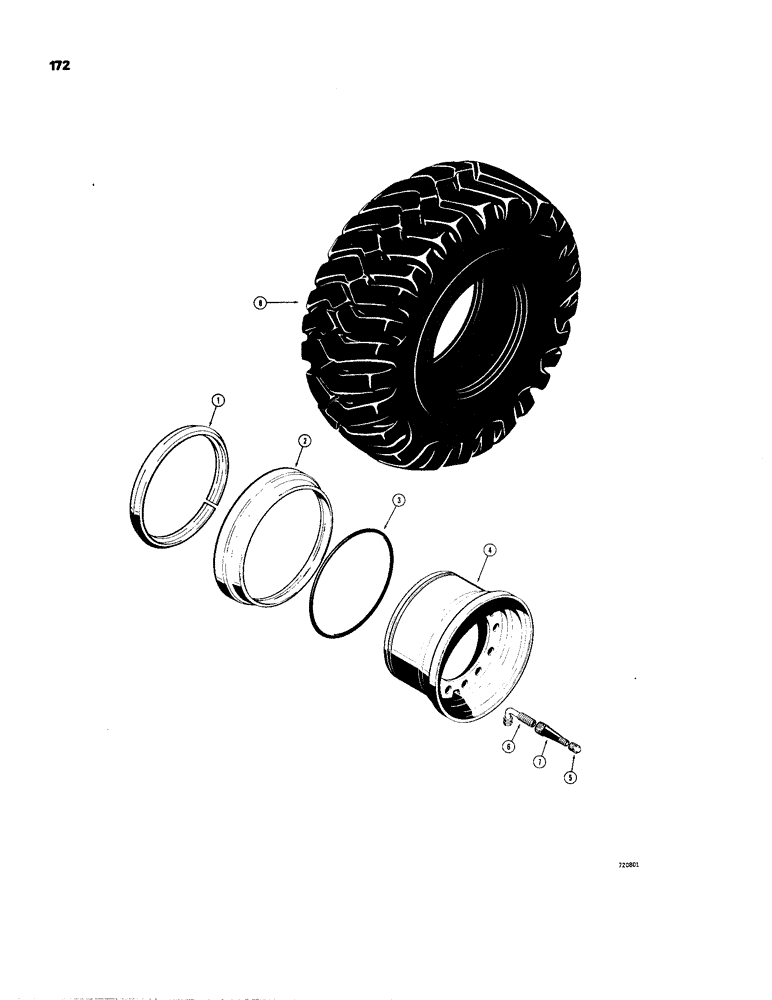

Запчасти Case W24B (172) - RIMS AND TIRES, USED ON MODELS WITH 17.50 X 25 - 12 PLY TIRES (06) - POWER TRAIN

1

A19100

LOCKING RING

RING - lock

4шт.

2

A19099

RING

- side, rim

4шт.

3

A19101

O-RING,6.6mm Thk x 590.55mm ID

4шт.

4

L78188

RIM

- tire

4шт.

5

L19664

VALVE STEM

CAP - adapter

4шт.

5

L33706

VALVE

CAP - valve, used in place of adapter, not shown

1шт.

6

L11405

VALVE

- tubeless tire, elbow

4шт.

7

L11406

ADAPTER

- tire valve

4шт.

8

REF

INSTRUCTION

TIRE - articulated loader

1шт.

1

A19100

LOCKING RING

RING - lock, used on models with 20.50 x 25 - 12 ply tires

4шт.

2

L12685

RING

- side, rim, used on models with 20.50 x 25 - 12 ply tires

4шт.

3

A19101

O-RING,6.6mm Thk x 590.55mm ID

used on models with 20.50 x 25 - 12 ply tires

4шт.

4

L78556

RIM

- tire, used on models with 20.50 x 25 - 12 ply

4шт.

5

L19664

VALVE STEM

CAP - adapter, used on models with 20.50 x 25 - 12 ply tires

4шт.

5

L33706

VALVE

CAP - valve, used in place of adapter, not shown, used on models with 20.50 x 25 - 12 ply tires

1шт.

6

L11405

VALVE

- tubeless tire, elbow, used on models with 20.50 x 25 - 12 ply

4шт.

7

L11406

ADAPTER

- tire valve, used on models with 20.50 x 25 - 12 ply

4шт.

8

REF

INSTRUCTION

TIRE - articulated loader, 20.50 x 25 - 12 and 16 ply tires

4шт.
