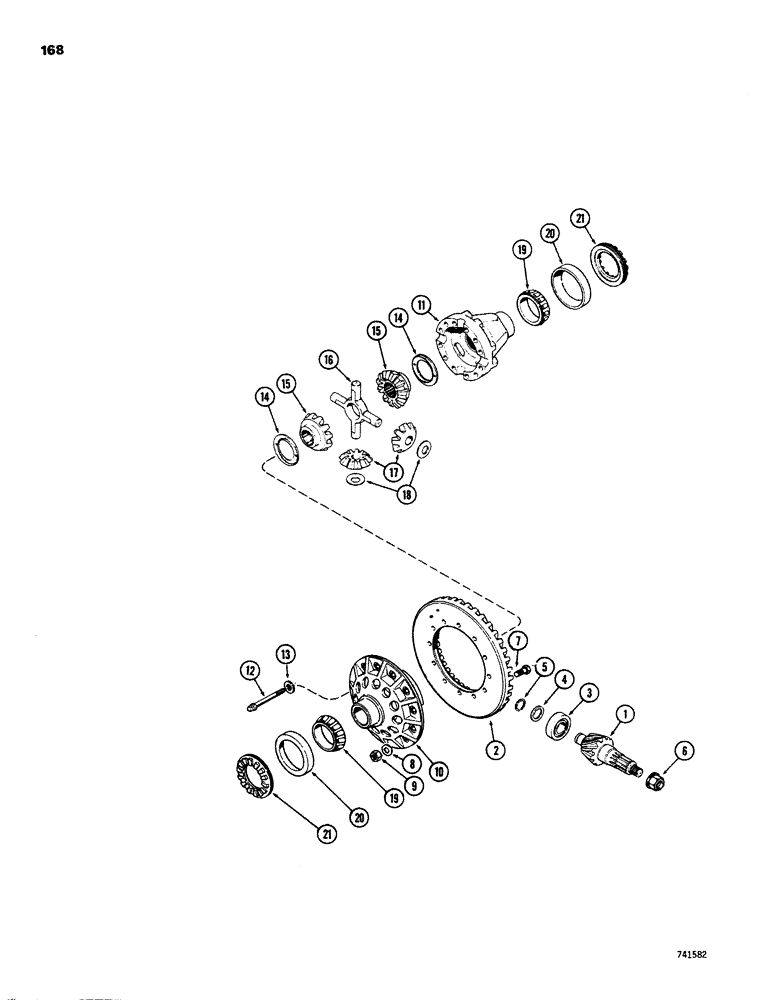

Запчасти Case W26B (168) - L58460 AND L73825 FRONT AXLE DIFFERENTIAL, PINION, RING GEAR AND DIFFERENTIAL CASE (06) - POWER TRAIN

L32857

DIFFERENTIAL

ASSEMBLY - service, 5-2/7 to 1 ratio (Does not include carrier to housing gasket, studs and washers) Must order and replace L30793 shim and L31651 cap when rebuilding, Includes: Ref. 1 - 21

1шт.

L36003

KIT

GEAR SET - pinion and ring gear, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

PINION - drive

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

3

L30784

ROLLER BEARING

- pinion

1шт.

4

L30788

RETAINER

- bearing

1шт.

5

B18206

SNAP RING,#87, Ext

Ring, Snap, , pinion bearing #87, Ext

1шт.

6

L35091

NUT

NUT - flange retaining

1шт.

7

L35920

BOLT (SPREADER)

BOLT - ring gear mounting

12шт.

8

L30737

WASHER

- hardened

12шт.

9

131-1137

NUT,5/8"-11, GC

- hex., 5/8" lock

12шт.

L33897

DIFFERENTIAL ASSEMBLY - 2-1/4" (57 mm) - 23 spline, Ribbed design (Not illustrated), Includes: Ref. 10 - 18

1шт.

L33896

DIFFERENTIAL

CASE ASSEMBLY - differential, Ribbed design (Not illustrated), Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CASE - differential. plain half

1шт.

11

NSS

NOT SOLD SEPARAT

CASE - differential, flange half

1шт.

12

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

- 5/8" - 11 NC x 3-3/4" (Used on ribbed design models)

8шт.

12

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- 5/8" - 11 NC x 2-3/4" (Used on ribbed designed models)

4шт.

13

L30737

WASHER

- differential case

12шт.

14

L30786

WASHER

- differential side gear

2шт.

15

L30797

GEAR WHEEL

GEAR - side, differential

2шт.

16

L31665

DIFF. SPIDER

SPIDER - differential

1шт.

17

L31663

PINION

- differential

4шт.

18

L31664

WASHER

- thrust, differential pinion gear

4шт.

19

L30834

ROLLER BEARING

CONE - differential bearing

2шт.

20

F65706

BEARING CUP

CUP - bearing, differential case, Includes: Ref. 21

2шт.

21

L30795

RING

- adjusting, differential bearing

2шт.
