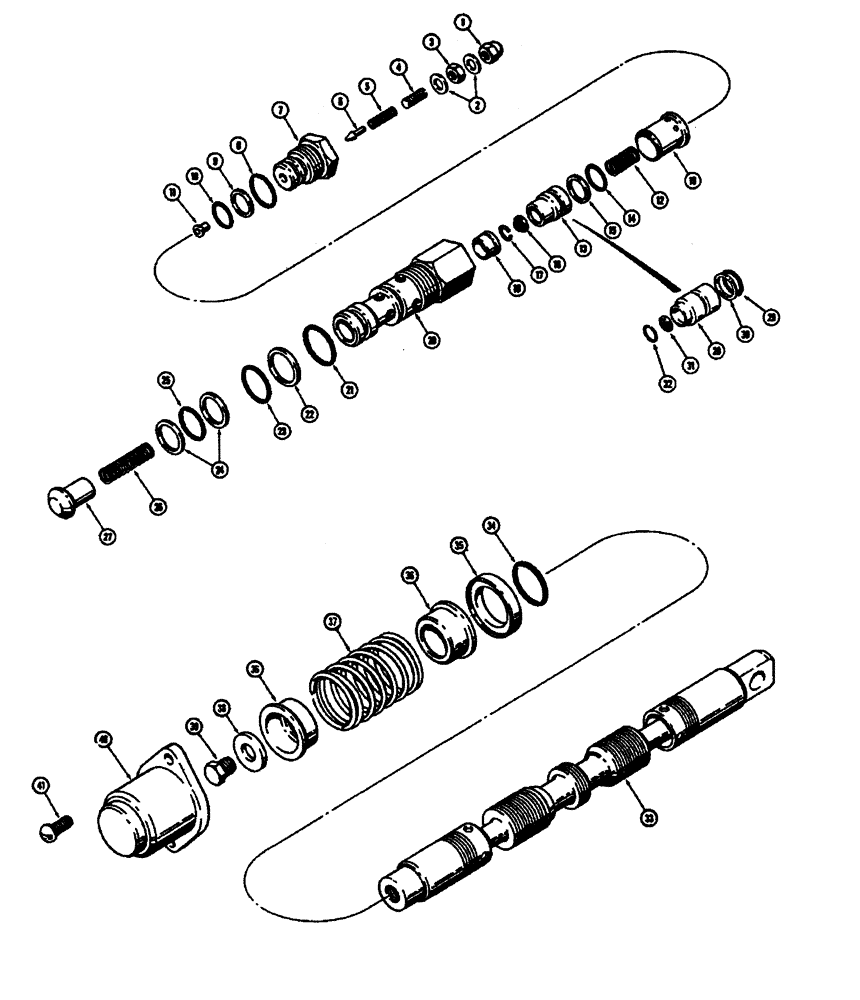

Запчасти Case W26B (456) - L52924 AND L52925 LOADER CONTROL VALVES L35451 SECONDARY RELIEF VALVE (08) - HYDRAULICS

L35451

LOCK VALVE

VALVE ASSEMBLY - secondary relief, Includes: Ref. 1 - 32

1шт.

1

129-514

CROWN NUT,Low, 5/16" - 24

- acorn, main relief valve

1шт.

2

D26270

WASHER, SEALING

WASHER - special

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

1шт.

4

176-299

SET SCREW,Sl Hdls, 5/16" - 24 x 7/8", Flat Pt

SCREW - adjusting (5/16" - 24 NF x 3/4")

1шт.

5

D26268

SPRING

- pilot

1шт.

6

D26267

PLUNGER

- relief valve

1шт.

7

L35452

CAP - relief valve

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, cap (Large) Outer

1шт.

9

T24414

BACK-UP RING,0.768" ID x 7" OD x 0.045" Width

- backup, small cap seal

1шт.

10

A24817

O-RING,0.744" ID x 7" OD

SEAL - "O" ring, cap (Small) inner

1шт.

11

D26266

SEAT

- plunger

1шт.

12

D52319

SPRING

- relief valve (Outer) Early production, 17-21 Ibs at .656" (7/7-9.5 kg at 16 mm)

1шт.

12

R30252

SPRING

- relief valve (Outer) Late production, 4.5-5.5 Ibs at .656" (2-2.4 kg at 16 mm)

1шт.

13

NSS

NOT SOLD SEPARAT

POPPET - relief valve (Outer) Use L36031 poppet assembly

1шт.

14

A24817

O-RING,0.744" ID x 7" OD

SEAL - "O" ring, poppet

1шт.

15

T24414

BACK-UP RING,0.768" ID x 7" OD x 0.045" Width

- backup, A24817 seal

1шт.

16

NSS

NOT SOLD SEPARAT

SCREEN - filter, use L36031 poppet assembly

1шт.

17

L35457

RING, SNAP

RING - retaining, screen

1шт.

18

L35455

SEAT - main, full flow (Early production only)

1шт.

19

L35456

SLEEVE - poppet

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - secondary relief valve

1шт.

21

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, valve housing (Outer)

1шт.

22

L31332

BACK-UP RING

- back up, center "O" ring seal

1шт.

23

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

SEAL - "O" ring, valve housing (Center)

1шт.

24

A41161

WASHER

RING - backup, inner "O" ring seal

2шт.

25

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, valve housing (Inner)

1шт.

26

L31286

VALVE SPRING

SPRING - relief valve (Inner)

1шт.

27

L31289

VALVE POPPET

POPPET - relief valve (Inner)

1шт.

L36031

VALVE POPPET

POPPET ASSEMBLY - relief (Late production), Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

POPPET - relief

1шт.

29

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

30

L36032

RING

- backup

1шт.

31

NSS

NOT SOLD SEPARAT

SCREEN - poppet

1шт.

32

L35457

RING, SNAP

SNAP RING - screen retaining, L52925 loader control (3 spool), clam

1шт.

33

L35461

SPOOL - clam, L52925 loader control (3 spool)

1шт.

34

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, L52925 loader control (3 spool), clam

1шт.

35

A15556

RING, SNAP

RETAINER - seal, L52925 loader control (3 spool), clam

1шт.

L35468

SPRING

AND CAP ASSEMBLY - clam spool, L52925 loader control (3 spool), Includes: Ref. 36 - 41

1шт.

36

A15543

RETAINER

- spring, L52925 loader control (3 spool), clam

2шт.

37

L32753

VALVE SPRING

SPRING - centering, L52925 loader control (3 spool), clam

1шт.

38

L35469

WASHER - special, L52925 loader control (3 spool), clam

1шт.

39

L35470

BOLT - special, spring retaining, L52925 loader control (3 spool), clam

1шт.

40

A15560

CAP - clam spool, L52925 loader control (3 spool), clam

1шт.

41

193-502

RHMS - 5/16" - 18 NC x 3/4" (With lockwasher), L52925 loader control (3 spool), clam

2шт.
