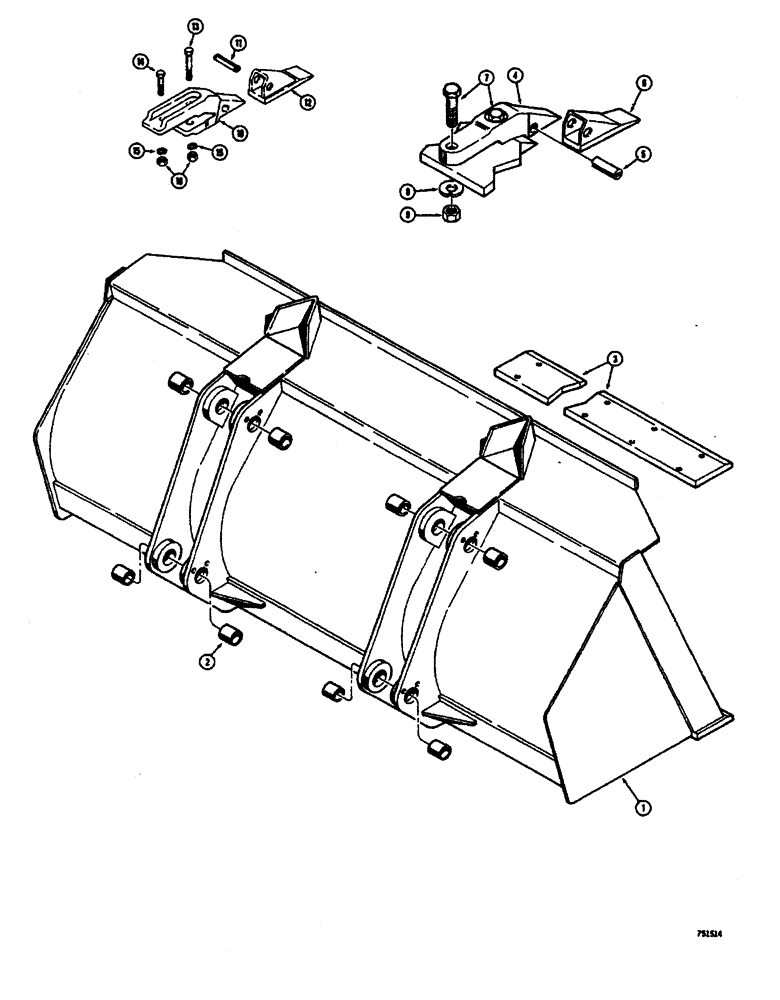

Запчасти Case W26B (354) - LOADER BUCKETS MACHINERY ITEM 2-1/2 CU. YD. (2 CU. METERS) BUCKET (18) - MISCELLANEOUS

L43058

BUCKET ASSEMBLY - loader, Includes: Ref. 1 - 3

1шт.

Bucket part number is stamped on identification plate near center rear of bucket spill guard.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L12988

BUSHING

- bucket ear

8шт.

3

L17171

CUTTING EDGE - bucket

1шт.

L43059

BUCKET ASSEMBLY - loader, 3 cubic yards (2.2 cubic meters), Includes: Ref. 1 - 3

1шт.

Bucket part number is stamped on identification plate near center rear of bucket spill guard.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 3 cubic yards (2.2 cubic meters)

1шт.

2

L12988

BUSHING

- bucket ear, 3 cubic yards (2.2 cubic meters) bucket

8шт.

3

L16839

EDGE

CUTTING EDGE - bucket, 3 cubic yards (2.2 cubic meters) bucket

1шт.

L43060

BUCKET ASSEMBLY - loader, 3-1/2 cubic yards (2.6 cubic meters), Includes: Ref. 1 - 3

1шт.

Bucket part number is stamped on identification plate near center rear of bucket spill guard.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - Loader, 3-1/2 cubic yards (2.6 cubic meters)

1шт.

2

L12988

BUSHING

- bucket ear, 3-1/2 cubic yards (2.6 cubic meters) bucket

8шт.

3

L16839

EDGE

CUTTING EDGE - bucket, 3-1/2 cubic yards (2.6 cubic meters)

1шт.

L43061

BUCKET ASSEMBLY - loader, 4 cubic yards (3 cubic meters), Includes: Ref. 1 - 3

1шт.

Bucket part number is stamped on identification plate near center rear of bucket spill guard.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 4 cubic yards (3 cubic meters)

1шт.

2

L12988

BUSHING

- bucket ear, 4 cubic yards (3 cubic meters)

8шт.

3

L16839

EDGE

CUTTING EDGE - bucket, 4 cubic yards (3 cubic meters)

1шт.

L43062

BUCKET ASSEMBLY - loader, 5 cubic yards (3.8 cubic meters), Includes: Ref. 1 - 3

1шт.

Bucket part number is stamped on identification plate near center rear of bucket spill guard.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 5 cubic yards (3.8 cubic meters)

1шт.

2

L12988

BUSHING

- bucket ear, 5 cubic yards (3.8 cubic meters)

8шт.

3

L17187

EDGE

CUTTING EDGE - bucket, 5 cubic yards (3.8 cubic meters)

1шт.

L17087

ROD ASSY.

TOOTH ASSEMBLY - bucket (H and L Tooth Co.), bucket teeth, Includes: Ref. 4 - 6

8-9шт.

4

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth

1шт.

5

L32090

PIN

FLEX PIN - tooth, bucket teeth

1шт.

6

L32089

POINT

- tooth, bucket teeth

1шт.

7

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

HHCS - 3/4" - 10 NC x 3-3/4", bucket teeth

18шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Bucket teeth 3/4"

18шт.

9

25-1012

NUT,3/4"-10, G5

Bucket teeth 3/4"-10, G5

18шт.

L55846

TOOTH

ASSEMBLY - bucket (American Steel Foundry Co.), bucket teeth, Includes: Ref. 4 - 6

8-9шт.

4

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth

1шт.

5

R29121

PIN

FLEX PIN - tooth, bucket teeth

1шт.

6

L35893

POINT

- tooth, bucket teeth

1шт.

7

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

HHCS - 3/4" - 10 NC x 3-3/4", bucket teeth

18шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Bucket teeth 3/4"

18шт.

9

25-1012

NUT,3/4"-10, G5

Bucket teeth 3/4"-10, G5

18шт.

L70481

TOOTH

ASSEMBLY - bucket (H and L Tooth Co. ), teeth, Includes: Ref. 10 - 12

8-9шт.

10

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth

1шт.

11

L32090

PIN

FLEX PIN - tooth, bucket teeth

1шт.

12

L32089

POINT

- tooth, bucket teeth

1шт.

13

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

Bucket teeth Hex, 3/4"-10 x 3 1/2", G5

8-9шт.

14

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Bucket teeth Hex, 3/4"-10 x 3", G5

8-9шт.

15

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Bucket teeth 3/4"

18шт.

16

25-1012

NUT,3/4"-10, G5

Bucket teeth 3/4"-10, G5

18шт.
