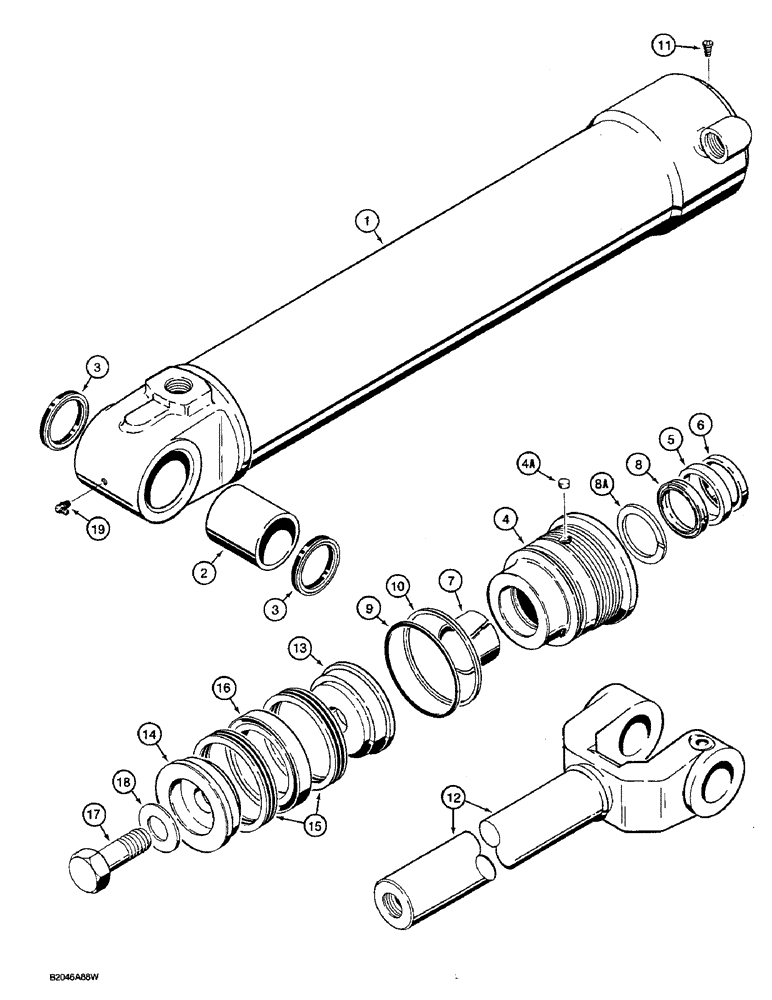

Запчасти Case W36 (8-410) - G100744 AND G109987 LIFT CYLINDERS (08) - HYDRAULICS

G100744

CYLINDER

- right-hand, 6" (152 mm) ID x 35-29/32" (912 mm) stroke, not shown, Includes: Ref. 1 - 19

1шт.

G109987

CYLINDER ASSY.

CYLINDER - left-hand, 6" (152 mm) ID x 35-29/32" (912 mm) stroke, not shown, Includes: Ref. 1 - 19

1шт.

1

G35534

TUBE,6" ID x 47.12" L

- G100744 right-hand cylinder, Includes: Ref. 2

1шт.

Per print, G109988 is tube illustrated with port at two o'clock. G35534 tube has port at ten o'clock.

1шт.

1

G109988

TUBE,6" DIA x 47.12" L

- G109987 left-hand cylinder, Includes: Ref. 2

1шт.

Per print, G109988 is tube illustrated with port at two o'clock. G35534 tube has port at ten o'clock.

1шт.

2

L73230

BUSHING

- each tube

2шт.

3

L70843

WIPER SEAL

SEAL - cylinder eye

2шт.

G104356

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bushing, if used

1шт.

6

D95148

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal Kit P/N G109500

1шт.

7

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

- split, gland

1шт.

Part of seal Kit P/N G109500

1шт.

8

G109054

SEAL,76.15mm ID x 88.95mm OD x 10.69mm Thk

- piston rod

1шт.

Part of seal Kit P/N G109500

1шт.

8

G100782

SEAL

- piston rod, service option, extreme heat or cold

1шт.

8a

G109015

SEAL,75.69mm ID x 91.82mm OD x 4.9mm Thk

- piston rod, narrow, used in addition to Ref. 8 in some glands

1шт.

Part of seal Kit P/N G109500

1шт.

9

A28239

O-RING,0.139" Thk x 5.984" ID, -258, Cl 5, 75 Duro

- gland seal

1шт.

Part of seal Kit P/N G109500

1шт.

10

G32649

WASHER

BACKUP RING - o-ring

1шт.

Part of seal Kit P/N G109500

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, no. 8 - 32 NC x 3/8"

1шт.

12

G105698

ROD

- 3" (76 mm) diameter

1шт.

13

D49317

PISTON ASSY.

PISTON - rod end, Includes: Ref.

1шт.

14

D49318

PISTON

- bolt end

1шт.

15

D49321

PACKING

ASSEMBLY - piston, V-type

2шт.

Part of seal Kit P/N G109500

1шт.

16

D49320

RING

- center bearing

1шт.

17

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- hex head, 1-1/2" - 12 NF x 3-1/2", grade 8

1шт.

18

G104990

WASHER

- hardened

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G109500

SEAL PACKAGE

KIT - seal, includes Ref. 6 - 8 (P/N G109054), 8A - 10 and 15

1шт.
