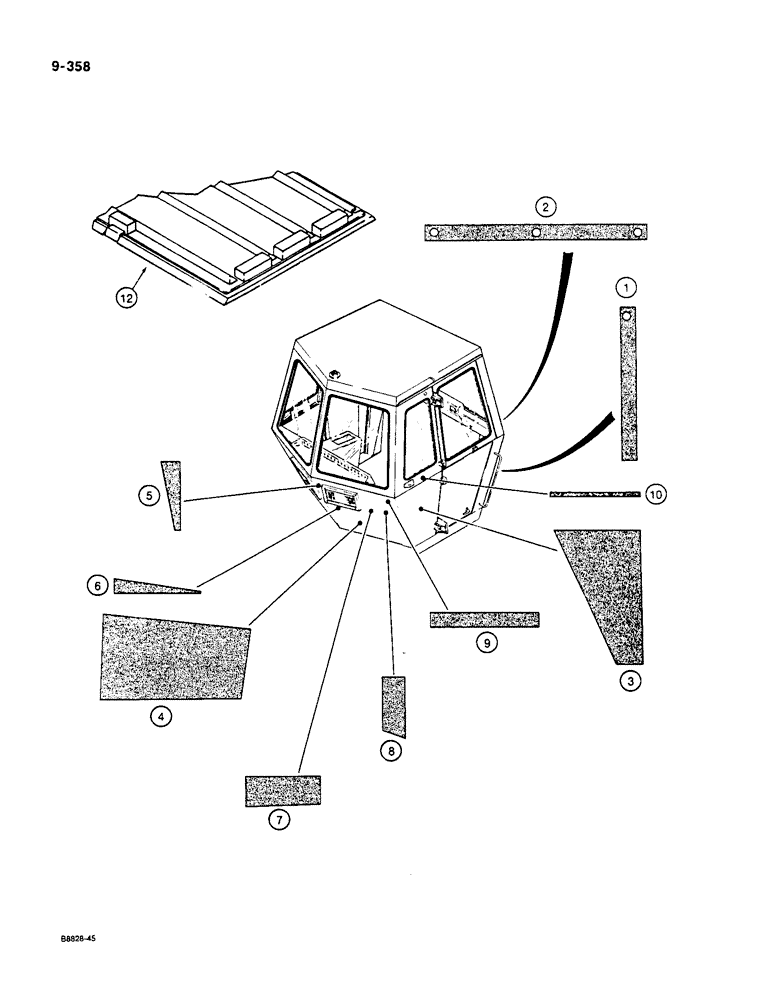

Запчасти Case W36 (9-358) - CAB SEALS AND PADS (09) - CHASSIS/ATTACHMENTS

1

D87127

FOAM

- cowl

2шт.

2

N9062

INSULATOR

STRIP - rubber, windshield

1шт.

3

D71526

FOAM

- side panel compartment

2шт.

4

D72726

FOAM

- rear lower panel

2шт.

5

D71531

FOAM

- lower panel, center

2шт.

6

D71532

FOAM

- lower rear panel, below filter

2шт.

7

D71533

SEAL ASSY.

FOAM - lower rear panel, outer sides of filters

2шт.

8

D71534

FOAM

- rear, outer side edges

2шт.

9

D72725

FOAM

- above filters, cut to desired width

2шт.

10

REF

INSTRUCTION

FOAM - 43-1/2" (1105 mm) long, under front edge of rear shelf, cut from L35801 bulk, Ref. 11

1шт.

11

L35801

FOAM

- bulk, 1/2" (13 mm) x 3/4" (18 mm) x 50 ft (15.2 m) not shown

1шт.

12

N13648

ROOF

HEADLINER ASSEMBLY - cab, includes Refs. 26 - 29 on Figure 111 and Refs. 32 - 37 on Figure 113

1шт.
